Garmin Tri-Tronics PRO 70 System

Garmin Tritronics PRO 70 System

If the Tritronics Classic 70 was your favorite system in the past, then you will really like the all-new “Pro 70” system from Garmin/Tri-Tronics!

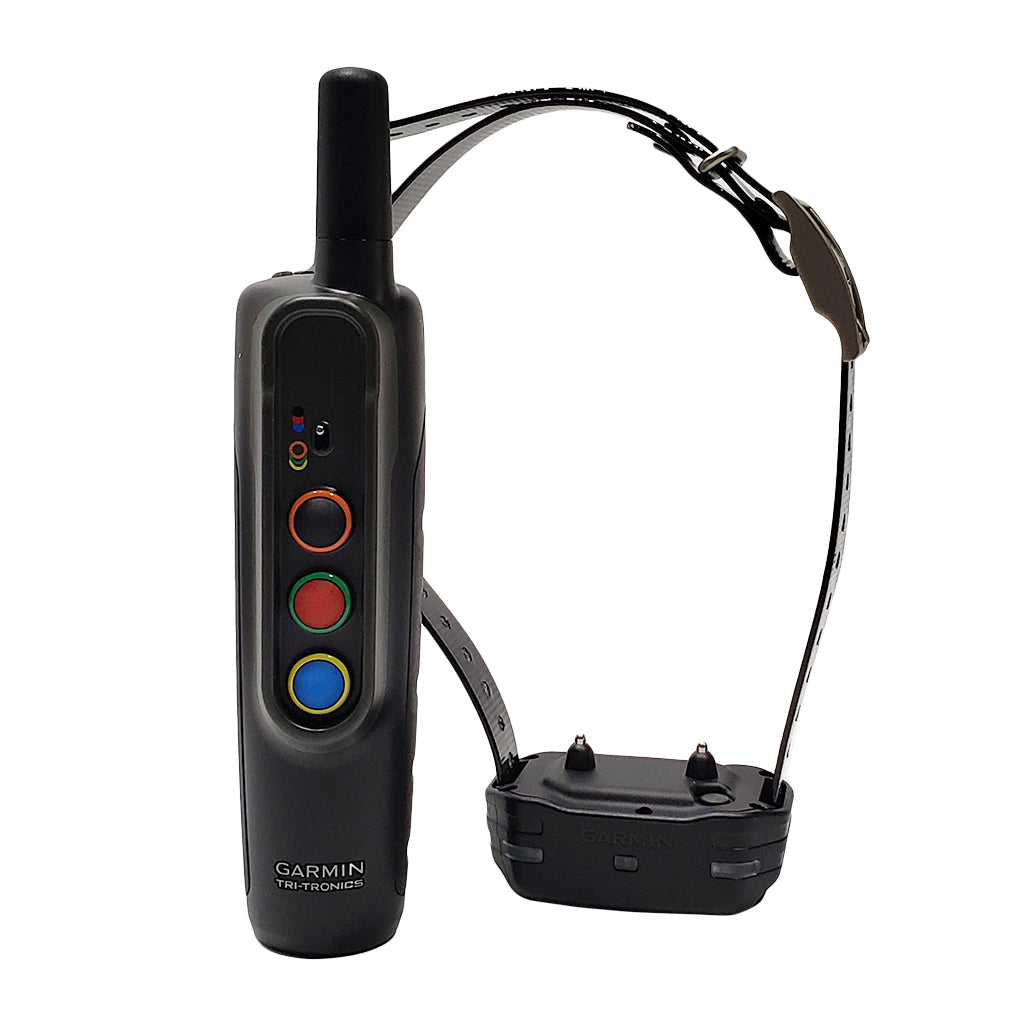

The user-friendly PRO 70 System transmitter allows easy 1-hand training and control with a maximum range of 1 mile in ideal conditions. The top-mounted transmitter selection dial provides control for the selection of 6 different levels of stimulation, warning tone option, and the remote on-off function of the LED lights on each dog collar. The LED beacon lights on the dog collar receivers are remotely controlled from the transmitter. This is a big help in locating your dogs in all low-light or dark conditions.

The Pro 70 can expand to train up to 6 dogs with the purchase of additional collars. The “Bark Limiter” function can be activated on any of the dog collar receivers by simply holding down on the collar receiver power button till the light turns blue. That’s all there is to it! This procedure turns your Pro 70 collar into an effective bark collar to stop nuisance barking. The Bark Limiter setting features auto rise technology, which automatically adjusts correction to the optimum level needed to stop unwanted barking.

Note: When the dog collar receivers are in “Bark Limiter” mode, you no longer have any control of them with your transmitter. To set them back into normal operating mode, simply shut the color off and turn it back on in the normal way.

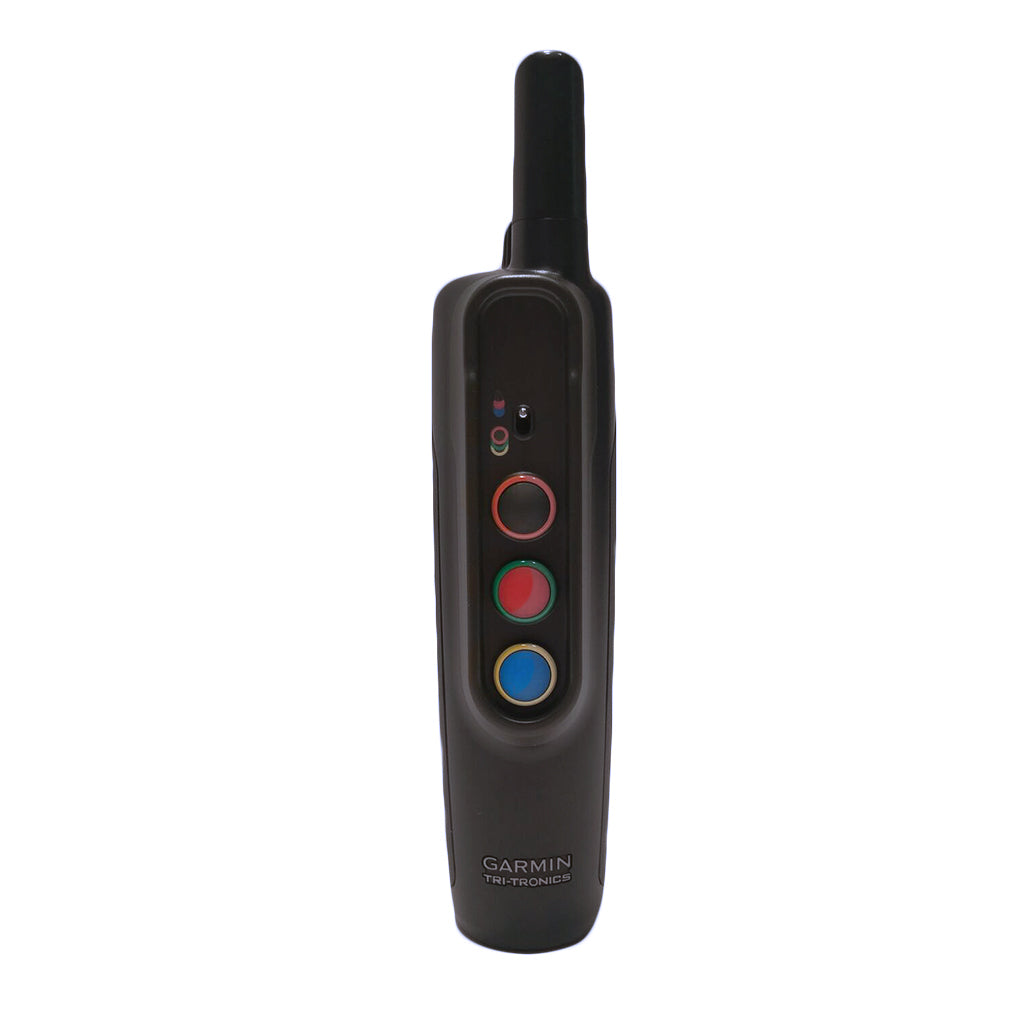

The PRO 70 transmitter features the same top toggle switch as the venerable “Classic 70”. With toggle switch in the UP position, you are controlling dogs Black, Red and Blue in that top-to-bottom order. Simply switch the toggle switch DOWN, and you will be controlling dogs Orange, Green and Yellow which are identified by circles of color around the major Black, Red and Blue buttons.

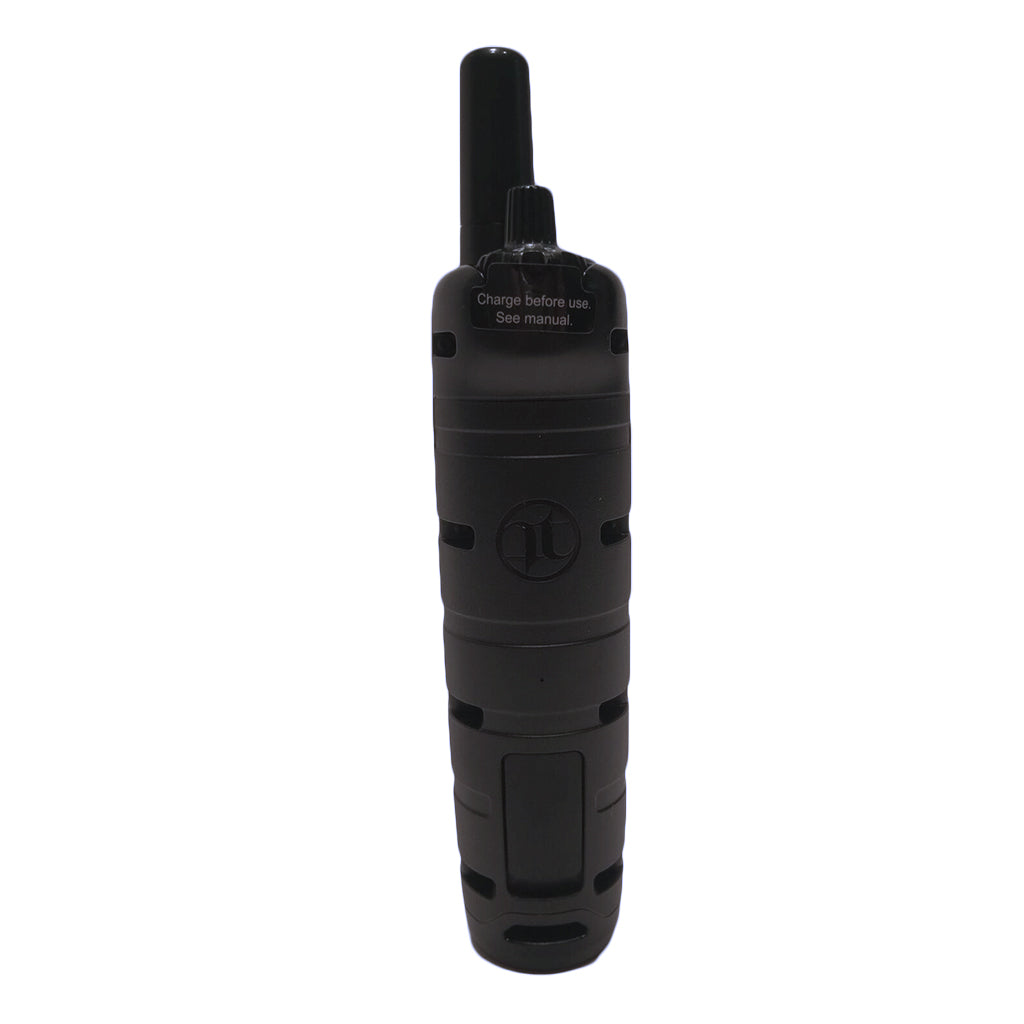

The transmitter uses the tried and true tube-shaped design that trainers have come to favor. This design makes it easy to operate one-handed so you can keep your eyes on your dog at all times, even while switching among different training functions and different dogs. A 2 ½-inch fixed transmitter antenna built into the casing of the transmitter eliminates the threat of a lost or broken antenna which could be a problem in older models.

Added BONUS: When you order a multi-dog system from Lion Country Supply, we will set your system up for you and even provide you with the appropriate color collar straps at NO extra charge!

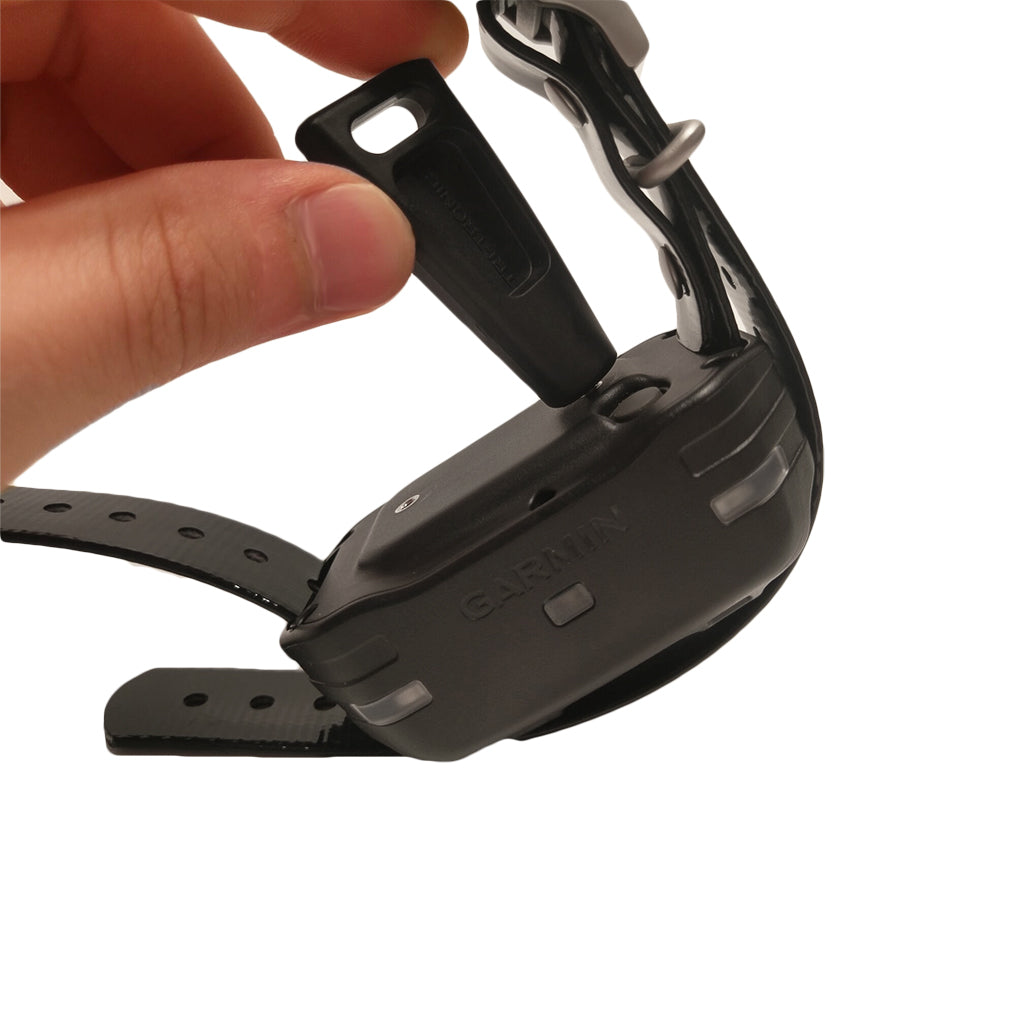

Both the transmitter and the dog device collar are designed to withstand all the blows, bumps and sloppy conditions of training and hunting. The dog device comes with 2 sizes of removable, stainless, insulated contact points for reliable performance in wet conditions and extended comfort for the dog. The dog device is water-rated to 1 ATM (10 meters). The PRO 70 transmitter itself is water-rated to IPX7.

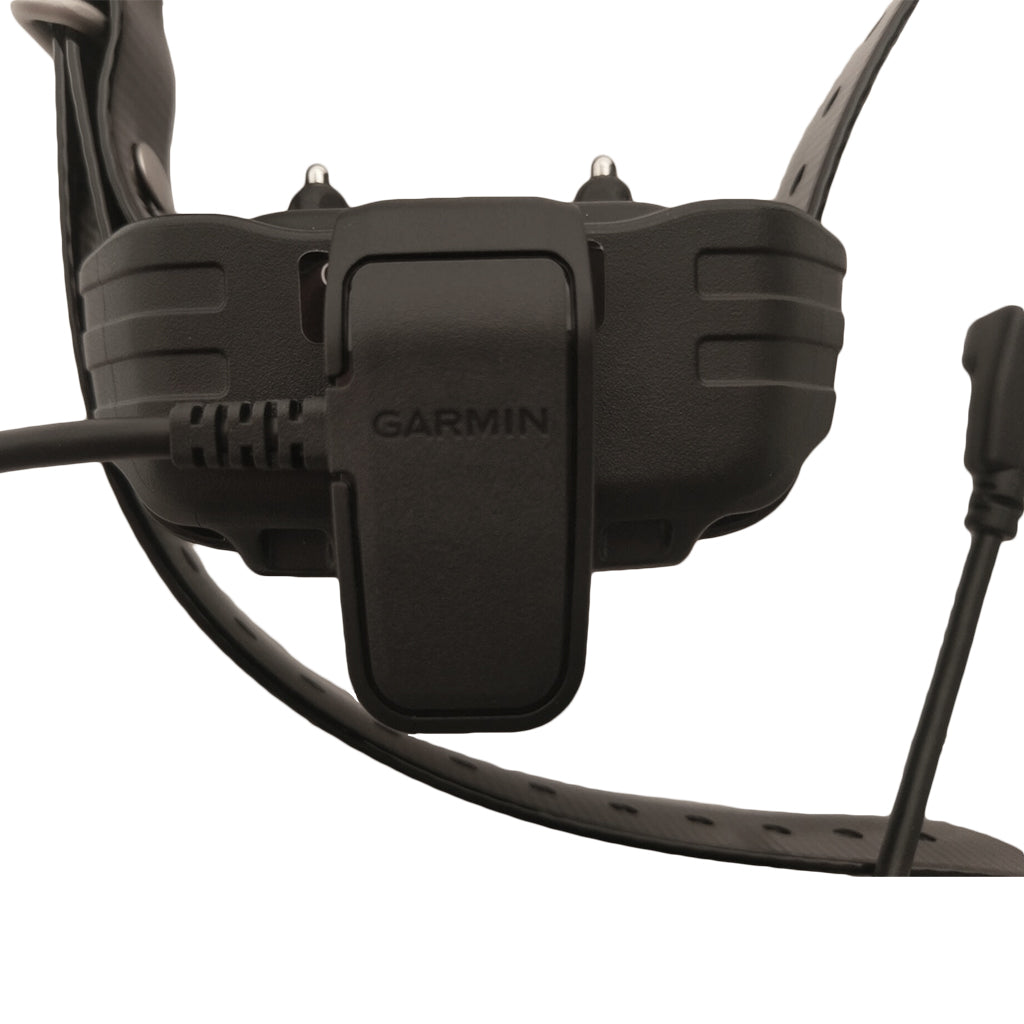

The transmitter and dog collar receiver device both feature a long-lasting, rechargeable, lithium-ion battery. A battery life indicator on the transmitter and dog device lets you know when to recharge the system. Charging takes about 2 hours from a dead battery to recharge using a clip for the collar unit and a direct plug in for the transmitter. No more cradles to break or misplace. The charging cord and clip are attached to make one piece.

Handheld Physical Specifications and Performance:

• Unit dimensions, WxHxD: 1.8" x 8.2" x 2.1" (4.5 x 20.8 x 5.4 cm)
• Weight: 7.8 oz (221 g)
• Range: 1 mile
• Multi-dog compatibility: 6
• Auto rise bark correction mode: yes
• Battery: rechargeable lithium-ion (included)
• Battery life: 80 hours
• Water rating: IPX7
• Floats: yes

Handheld Features:

• Correction levels: 6
• Momentary/continuous correction: Continuous only
• Vibration correction: no
• Tone correction: yes (on dial)

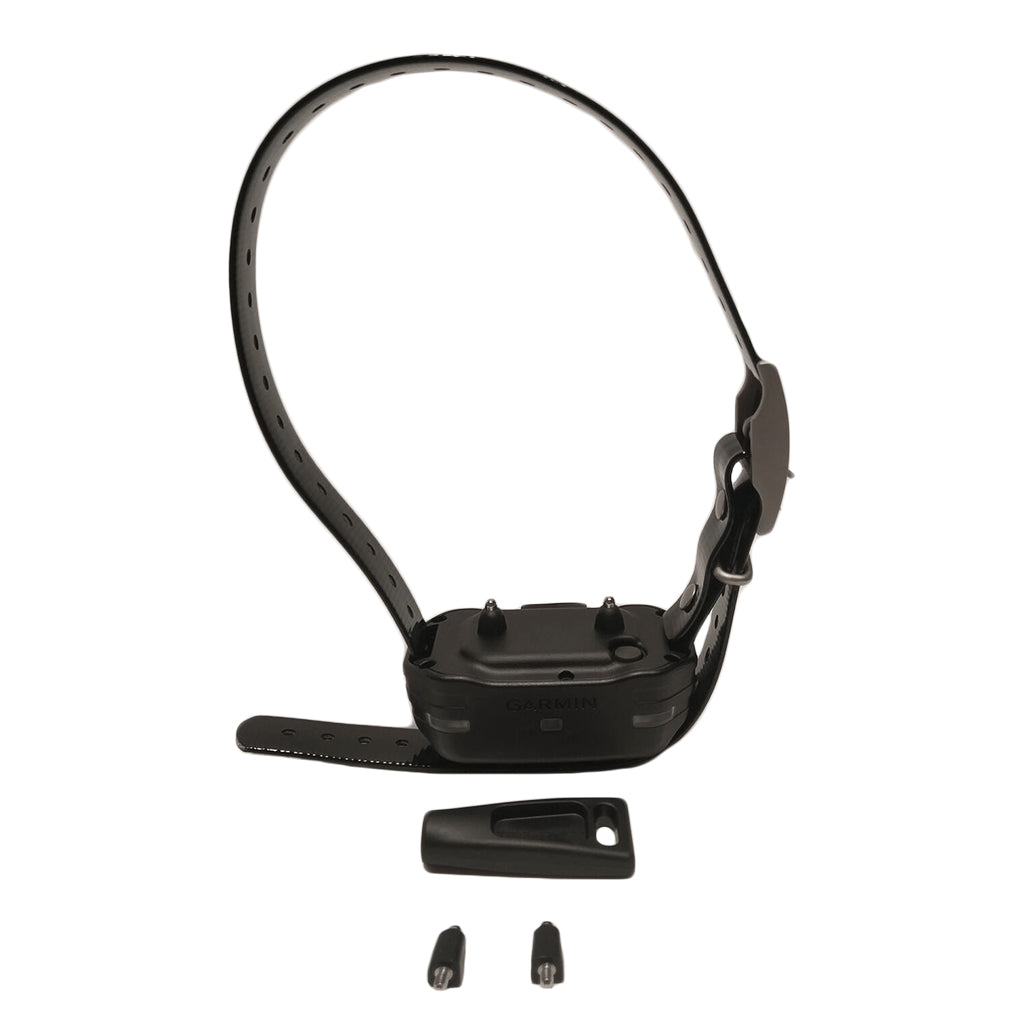

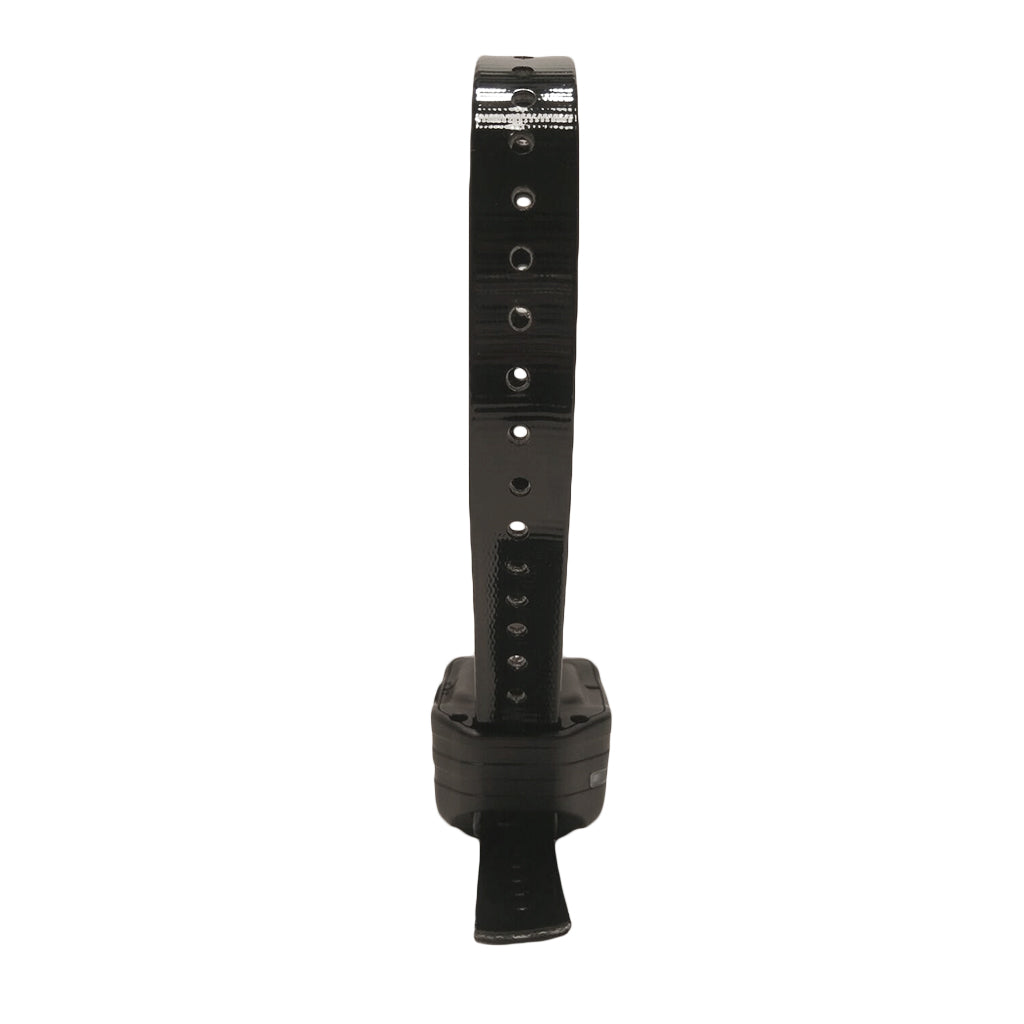

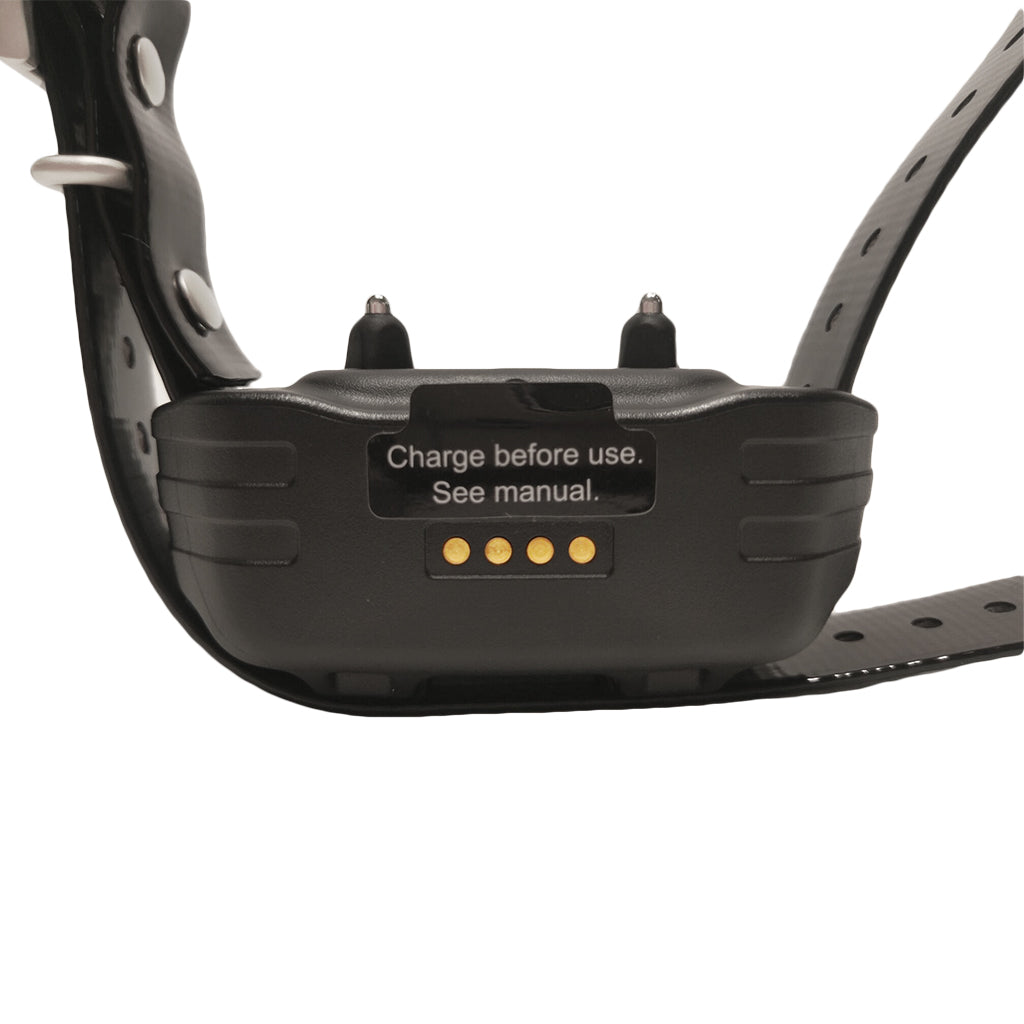

Dog Collar Device (Receiver):

• Unit dimensions, WxHxD: 3.1" x 1.7" x 1.7" (7.8 x 4.4 x 4.4 cm)
• Weight: 3.5 oz (98 g)
• Battery: rechargeable lithium-ion (included)
• Battery life: 60 hours
• Water rating: 1 ATM
• Floats: no

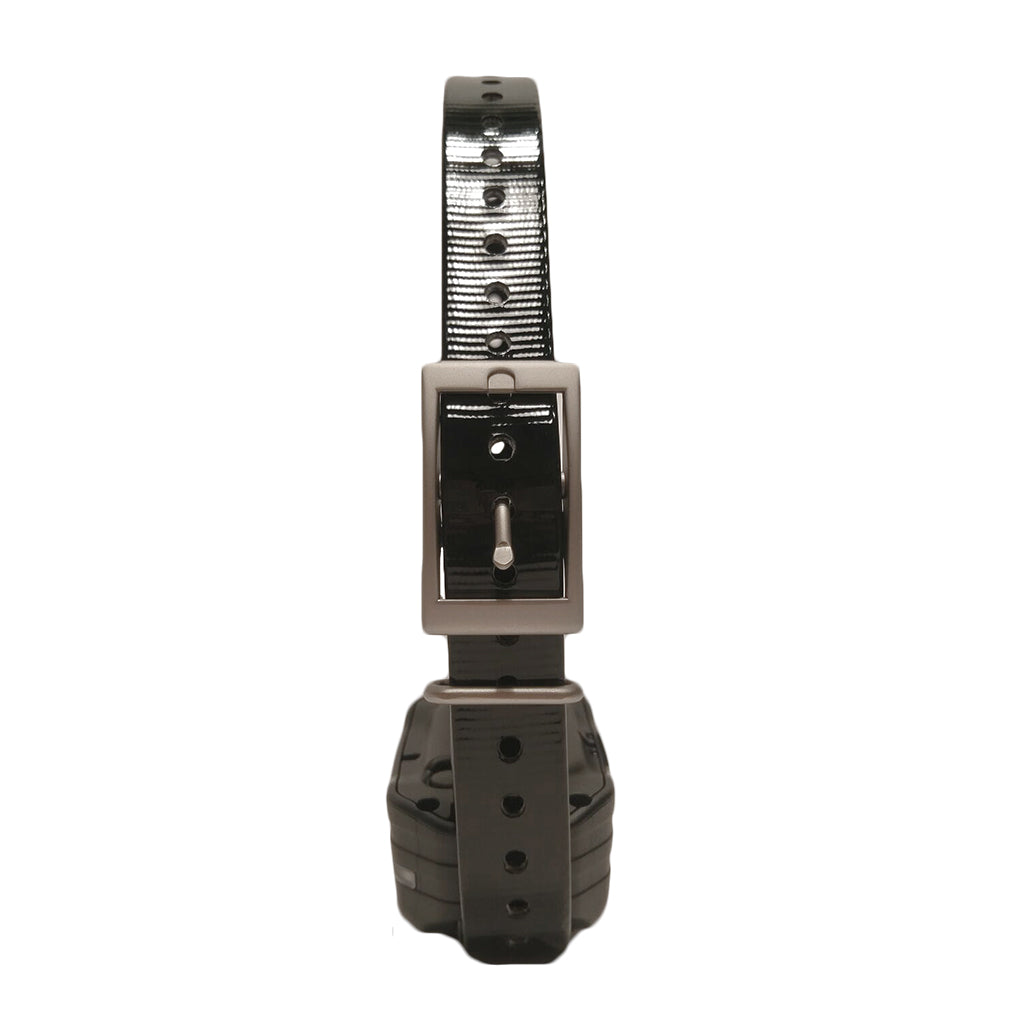

• Collar strap size: 3/4” Dog Device Features
• Beacon lights: yes
• Vibration: no
• Accessory unit activation: no
• Bark Limiter™ mode: yes
• Tone: yes

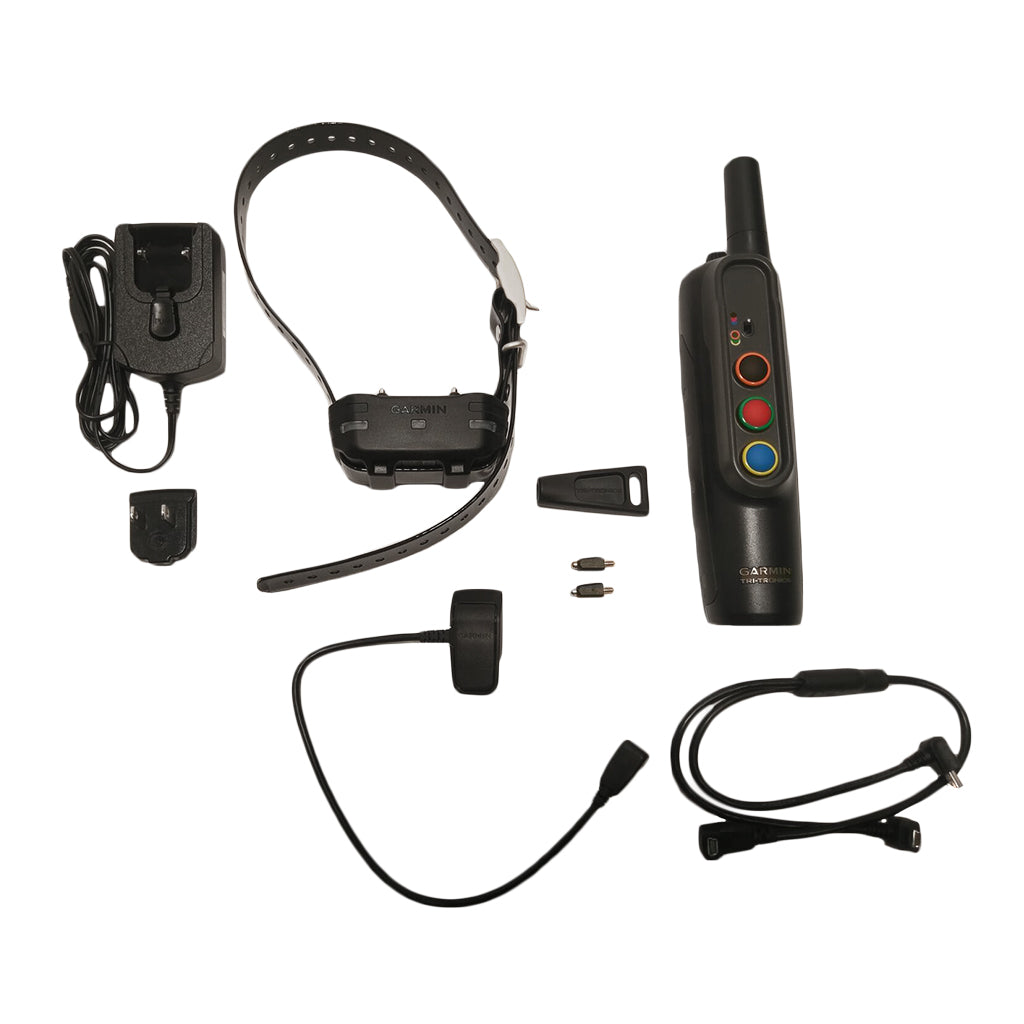

System Contents:

• PRO 70 handheld
• PT 5 dog device
• 3/4 inch black collar strap
• AC adapter
• Split adapter cable
• Charging clip
• Contact point set with wrench
• Manual
• Works interchangeably with the PT 10 dog device, if additional collars are needed
• Battery life: 80 hours
• Water rating: IPX7
• Floats: yes

---

Owners Manual:

Garmin PRO 70 Manual

---

---

FAQ
Will this transmitter or collar work with any previous Tritronics systems?
Unfortunately, no the PRO 70 transmitter or collar does not work on older Tritronics systems.

Does this system come with a carry/storage case?
No, but we offer a very nice Garmin Equipment Field Bag.
