Dogtra 200C

Features of the Dogtra 200C

• 1-Handed Operation.
• 2-hour rapid charge battery.
• Reduced Size Receiver.
• Non-Stimulating High-Performance Pager.
• Fully Waterproof (IPX9K)
• 1/2 mile range.
• Stimulation level (0-100).
• Nick and Constant stimulation.
• For Dogs as Small as 10 Pounds.
• 2-year Limited Lifetime Warranty.
• Available in a 2-Dog System Option (202C).

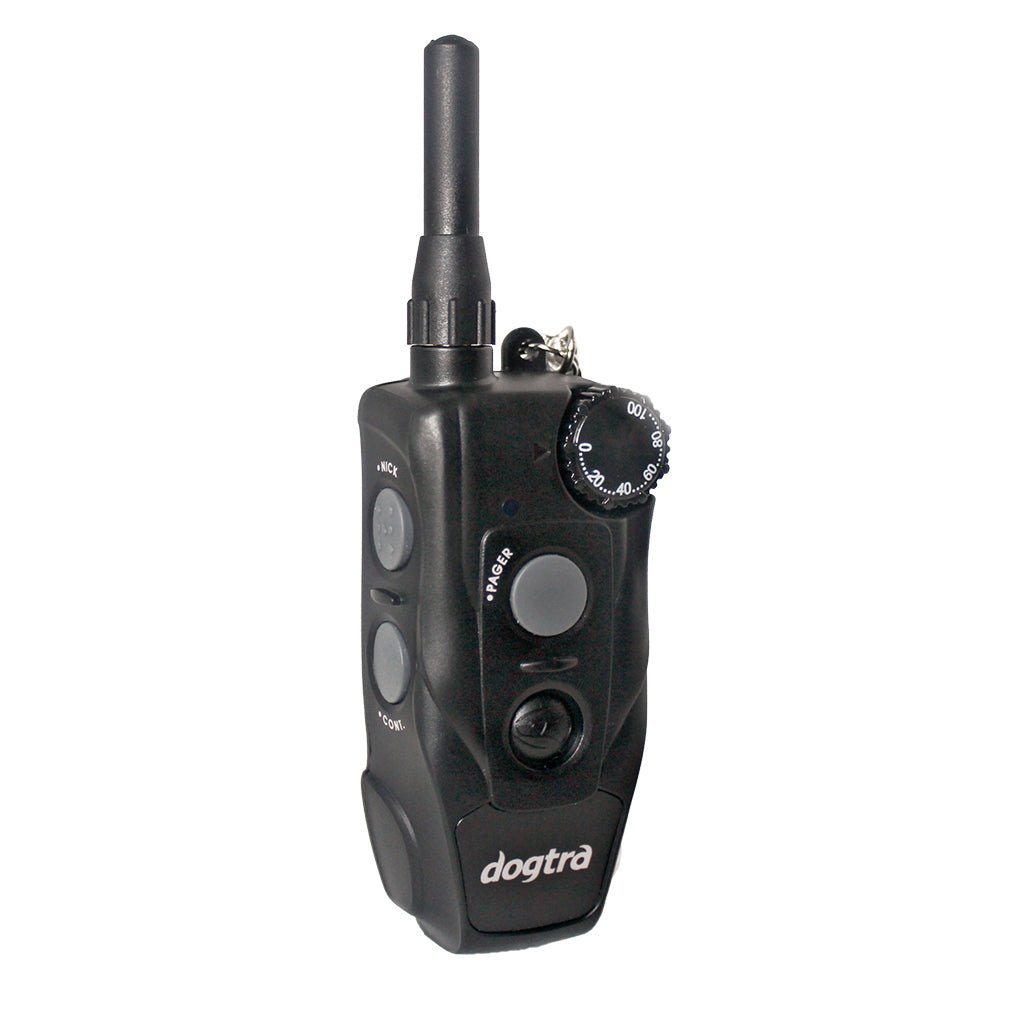

Dogtra 200C Transmitter (Hand-Held)

• Fully Waterproof (IPX9K)
• Rheostat front-facing dial.
• 100 levels of precision stimulation.
• Momentary (Nick) and Constant Stimulation.
• Non-stimulating High-Performance Pager(Vibration).
• 2-hour rapid charge Lithium Polymer battery.
• Rechargeable batteries.
• One-handed operations.
• Fits very comfortably in your hand.

Dogtra 200C Collar (Receiver) Features

• Reduced size receiver that fits dogs as small as 10 pounds.
• 3/4 inch black collar strap fits up to a 24-inch neck.
• Internal antenna system.
• Rugged molded case.
• Magnetic on/off switch.
• Fully waterproof collar.
• Low to medium power stimulation.
• 100 levels of stimulation.
• 2-hour rapid charge Lithium Polymer battery.
• Rechargeable user-replaceable batteries.
• 3 color LED indicator lets you know when the battery is getting low.
• Receiver dimensions: 2 3/8" x 1 2/4" x 1"

IPX9K WATERPROOF RATING:
This unit has been tested and has received a waterproof rating of IPX9K. The Ingress Protection (IP) rating classifies the level of protection provided by the exterior casing and electrical enclosures against a variety of elements. Dogtra's IPX9K rating has been specifically tested for waterproof protection. This unit was tested at close range using powerful water jets with high pressure and high temperature over various points.

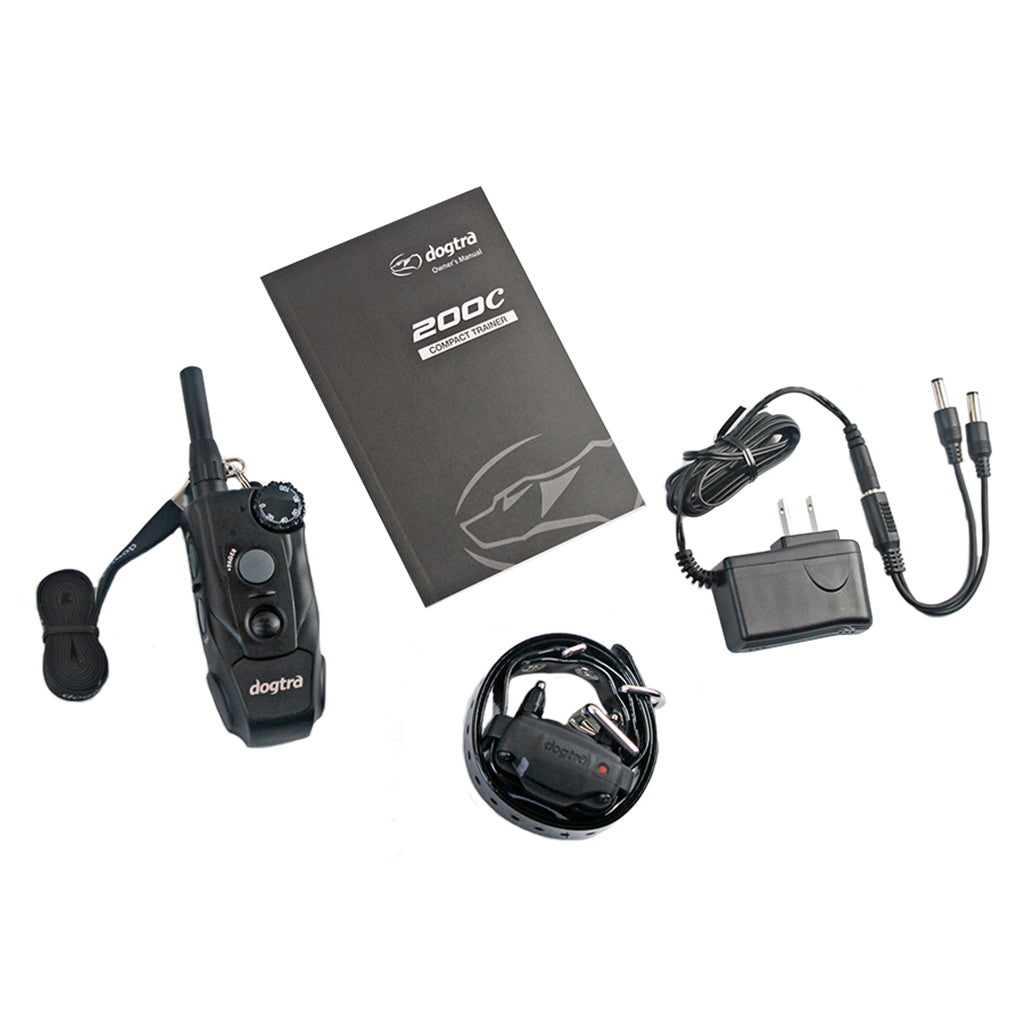

Dogtra 200C Package Contains

• Waterproof Hand-held Transmitter
• Waterproof Receiver Collar
• Battery Charger and Splitter Cable
• Dogtra Lanyard
• Owner's Manual

Is the Dogtra 200C system waterproof?

Yes, the Dogtra 200C system is rated at IPX9K waterproof rating. This rating means that the Dogtra 200C can be it passed the highest waterproof and pressure test available! The IPX9K is an Ingress Protection rating system test that verifies a product is protected against close-range high pressure liquid spray.

What is the training range of the 200C?

The Dogtra 200C is rated at 1/2 miles of range. This is line of sight range and actual range can be lower depending on terrain and cover.

How do I turn on the receiver of the Dogtra 200C?

To turn on the receiver, line up the red dot on the back of the transmitter to the red dot on the side of the receiver. After being near each other for a few seconds, the receiver’s LED will flash and is ready to be used. To turn off the receiver repeat the same process holding the two red dots together longer than it took to turn on the receiver, after a few moments the receiver will power off.

How do I know when the unit needs charged?

The receiver has a LED indicator light that will blink every 4 seconds. The transmitter’s LED will blink when a training button is pressed. The color of the LED light indicates the battery status as the following:

Green Light = Fully charged

Yellow Light = Medium charged

Red Light = Needs charged

Depending on how depleted the battery, when the LED is showing red, any further usage may cause the unit to shut down automatically.

What is the pager training button on the Dogtra 200C?

The pager training button produces a vibration on the collar, up to 12 seconds if held down.
