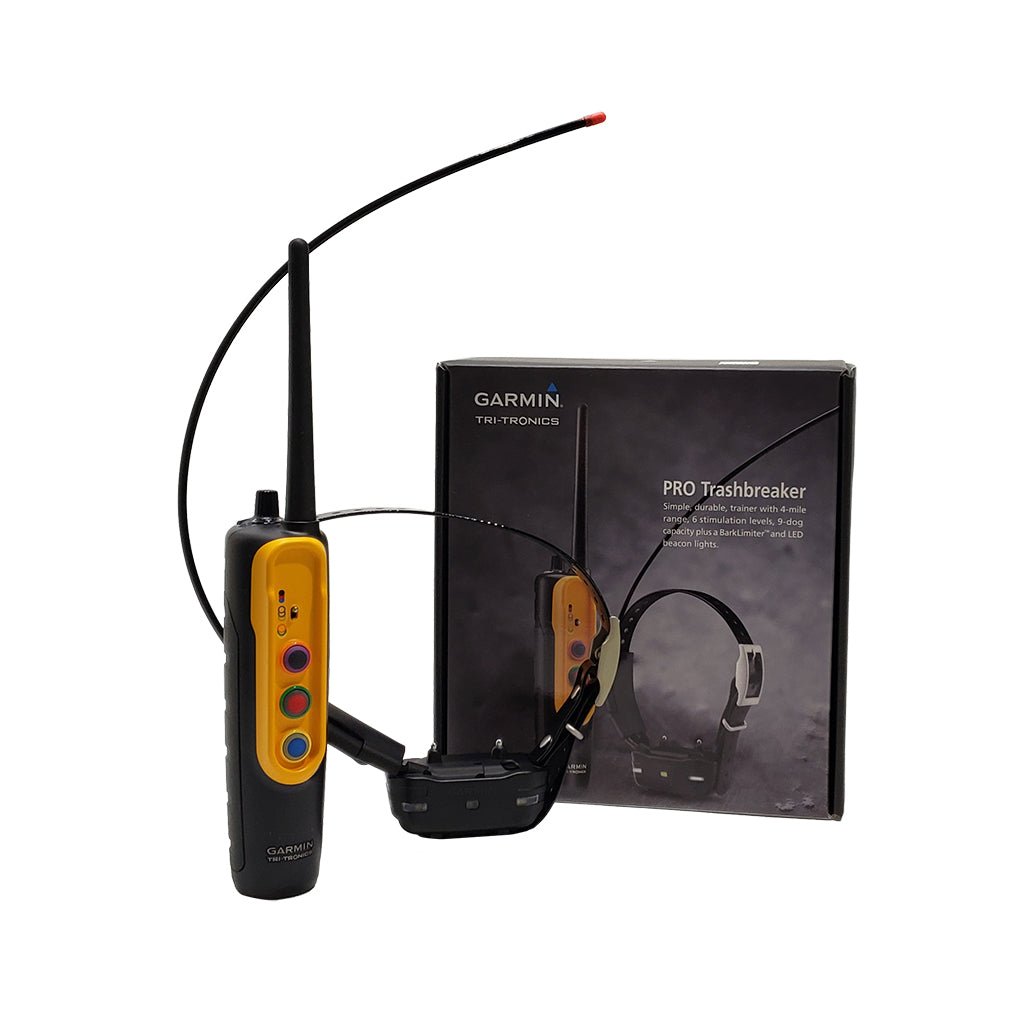

Garmin Tri-Tronics PRO Trashbreaker System

Garmin Tri-Tronics PRO Trashbreaker System

Features:

• Six levels of stimulation intensity plus tone setting
• Train up to nine dogs
• Remote-controlled LED beacon lights
• Built-in BarkLimiter

Train an entire pack of dogs to be the ultimate hunting partners within a 4 mile range with the Garmin/Tri-Tronics Pro Trashbreaker. Top-mounted selection dial allows you to operate six levels of stimulation intensity plus tone setting single-handedly. Compact yet durable receiver withstands the demands of outdoor usage. Train up to nine dogs (additional receivers sold separately) with color-coordinated buttons for each collar. Also features remote-controlled LED beacon lights to find your dog in low-light conditions. When activated, the built-in Bark Limiter™ can be used at home for kennel control. Collars Uses a 3/4" collar strap. Waterproof rating of 3 feet for handheld, 32 feet for receiver. Receiver has Interchangeable contact points.

• 3 color coded buttons with 3-position toggle allow you to add up to 9 dogs to your system at any time (with purchase of additional collars)
• "T" setting on intensity dial activates non-stimulating Tone feature
• "L" setting on intensity dial remotely controls built-in Beacon Lights
• 6 levels of continuous stimulation
• 4 mile range
• Fully waterproof to 3 feet -- it even floats!
• Ergonomic and balanced 1-handed design
• Rubberized sure-grip, no-slip area for your hand on the back
• Removable / replaceable antenna
• Quick charge Li-Ion batteries are user-replaceable and last 3-5 years with proper care
• Approx. 60 hour battery life
• LED battery charge indicator
• Virtually indestructible Lexan construction
• Lanyard connection slot
• Weight: 8.1 ounces
• Transmitter dimensions: 11.2"H x 1.8"W x 2.1"D

• Remote controlled, built-in Beacon Lights
• Built-in Bark Limiter activated at the collar
• 3/4" black collar strap with square double buckle and metal keeper fits up to a 24" neck
• Approx. 40 hour battery life
• External long-range antenna
• Plastic Lexan molded case built to withstand all kinds of training and hunting conditions
• Waterproof collar/receiver to 32 feet (perfect for retriever training)
• No exposed charging ports to gather debris, no covers to remove for charging
• Quick charge Li-Ion batteries are user-replaceable and last 3-5 years with proper care
• Built-in LED is a battery charge indicator and test light
• On/Off switch activated at the collar
• Weight: 4.1 ounces
• Receiver dimensions: 1.7"H x 3.1"W x 1.7"D
• Collar strap dimensions: 3/4" x 27"

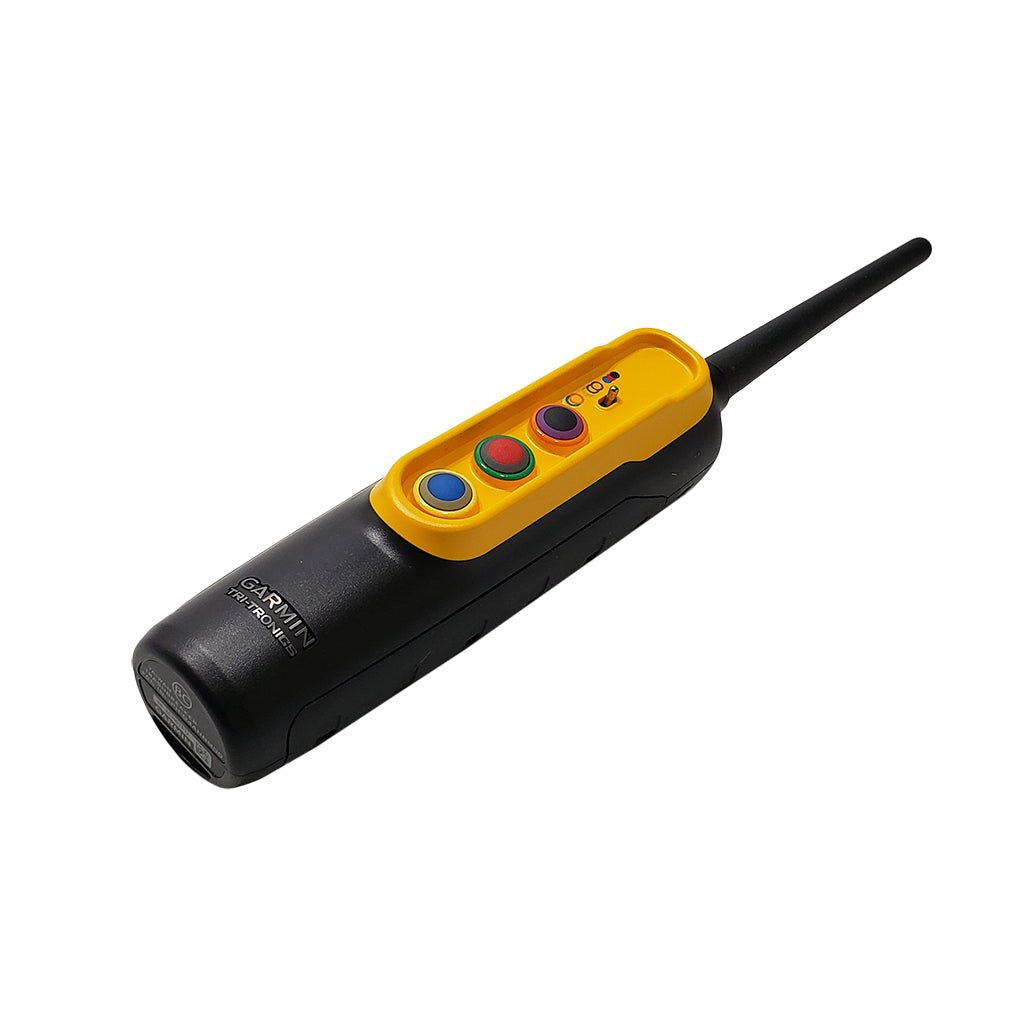

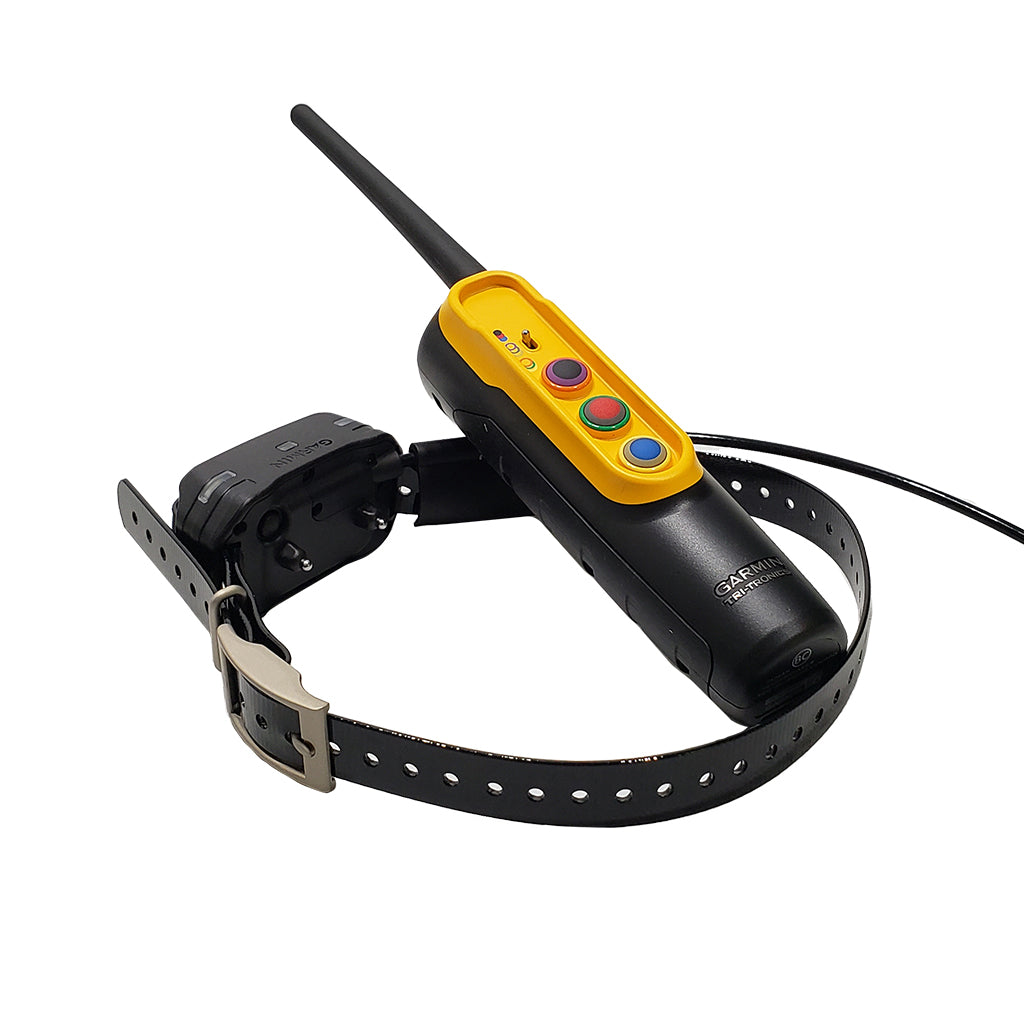

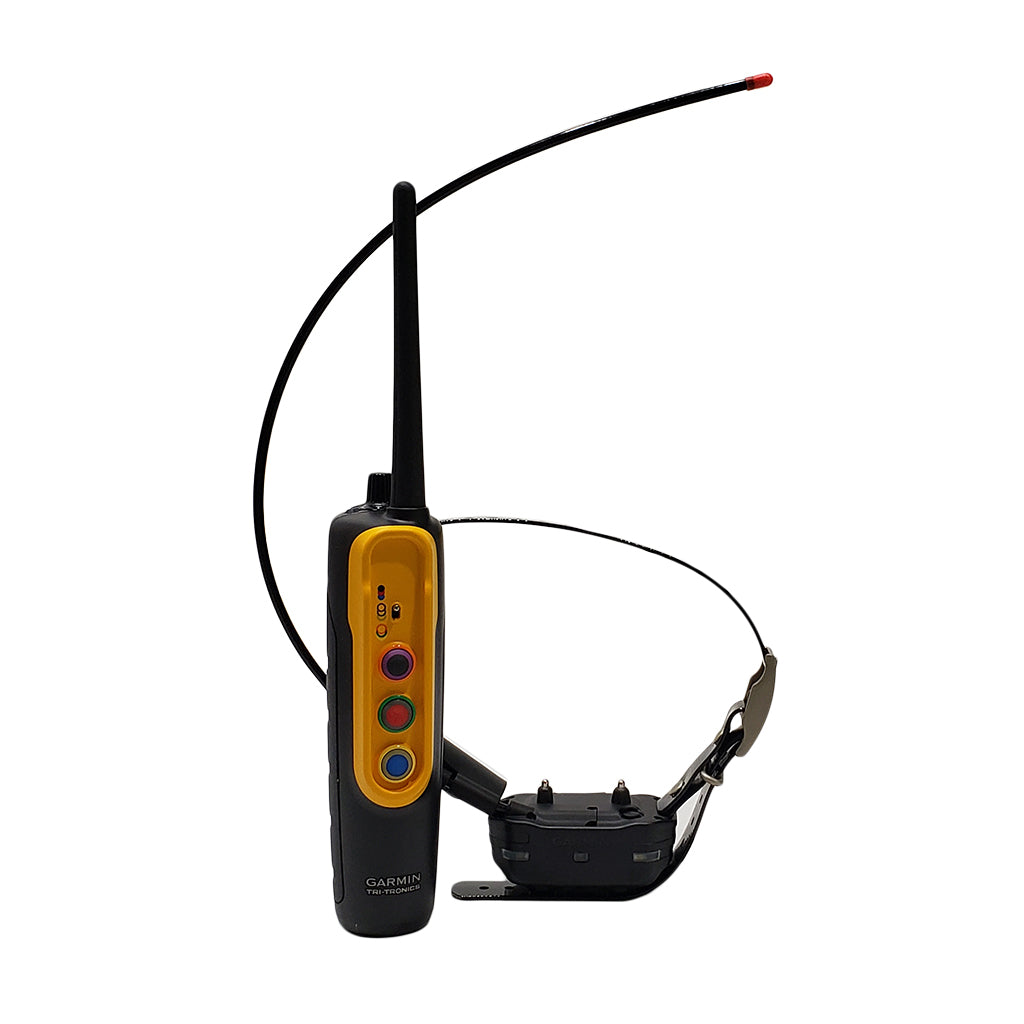

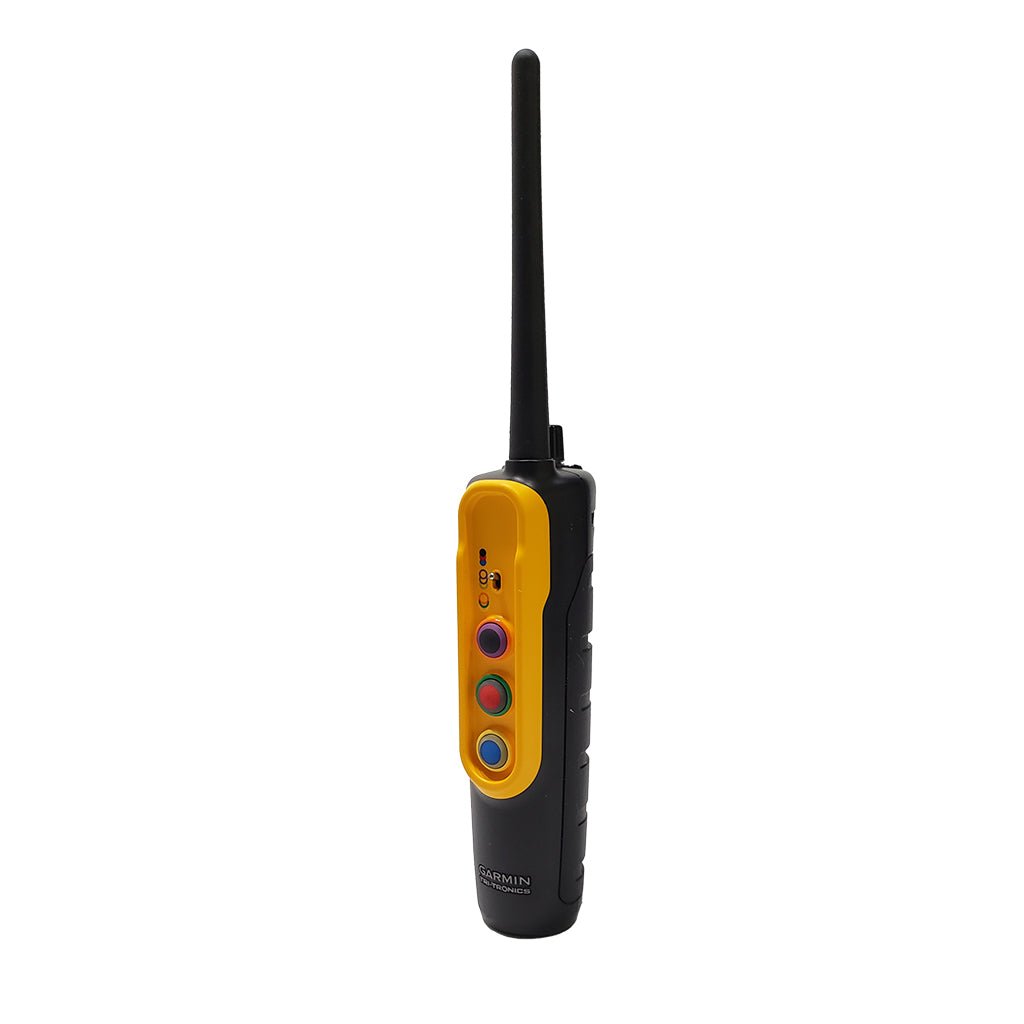

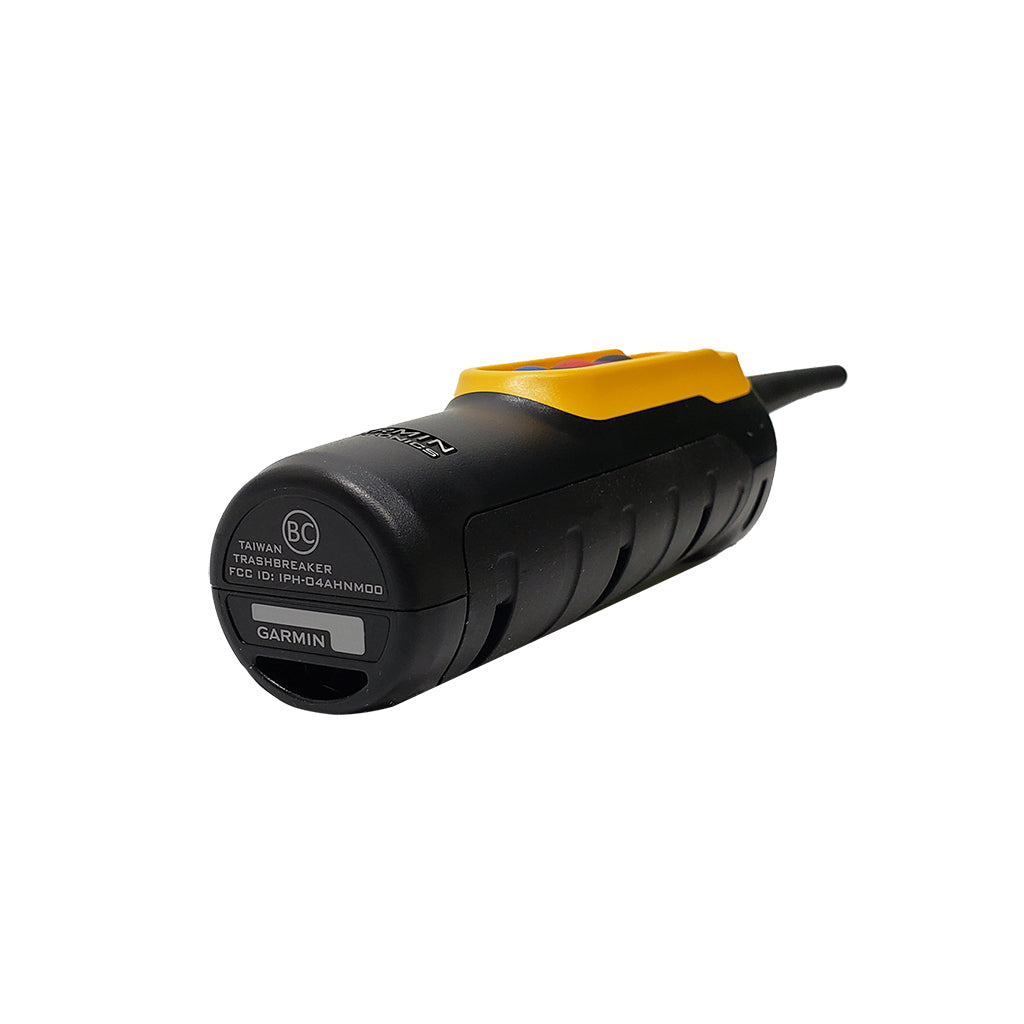

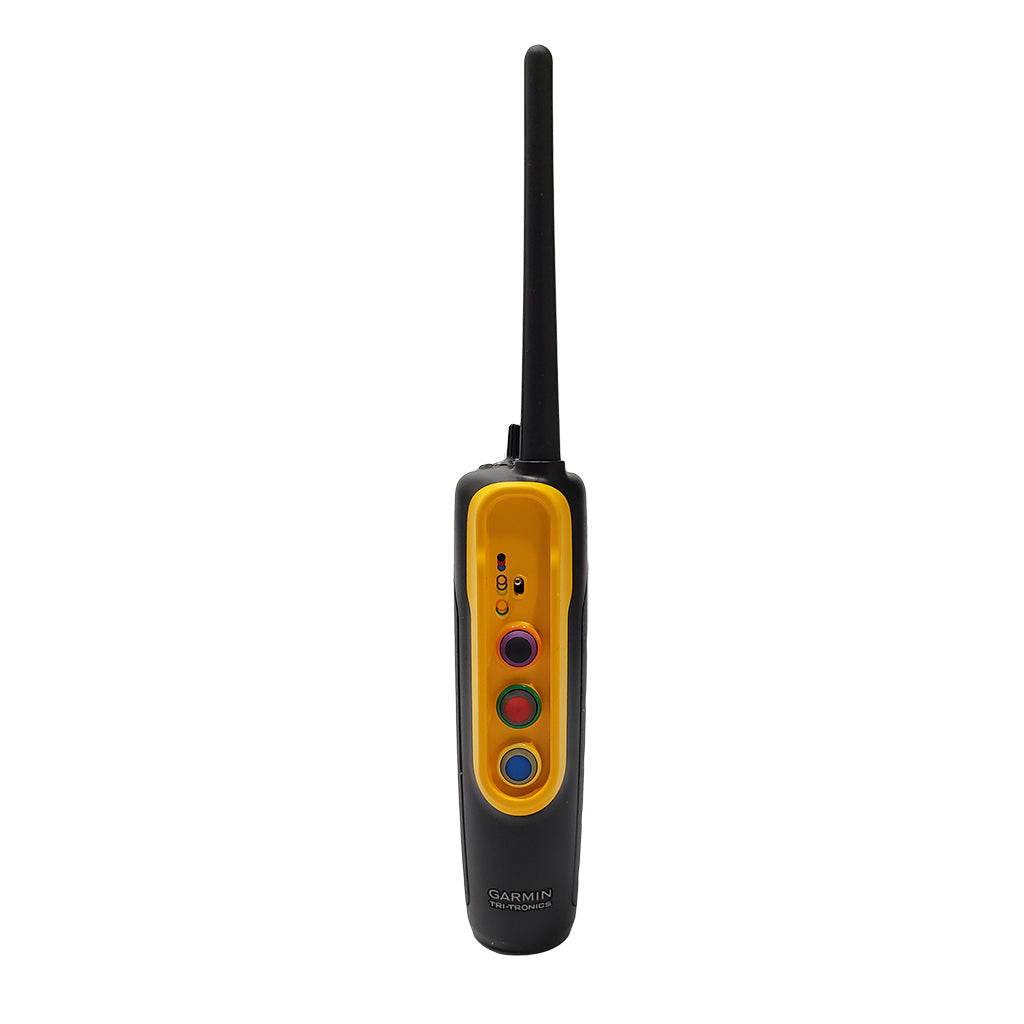

• Handheld waterproof transmitter

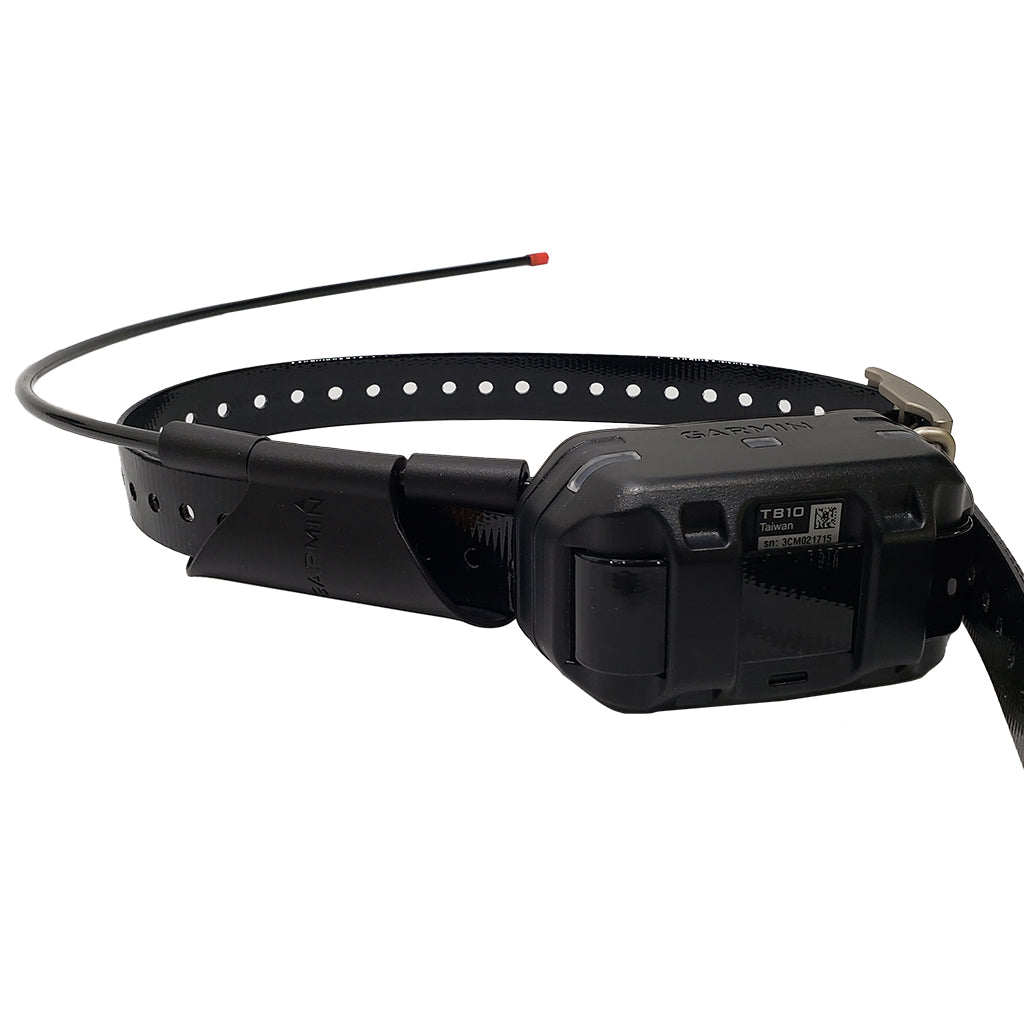

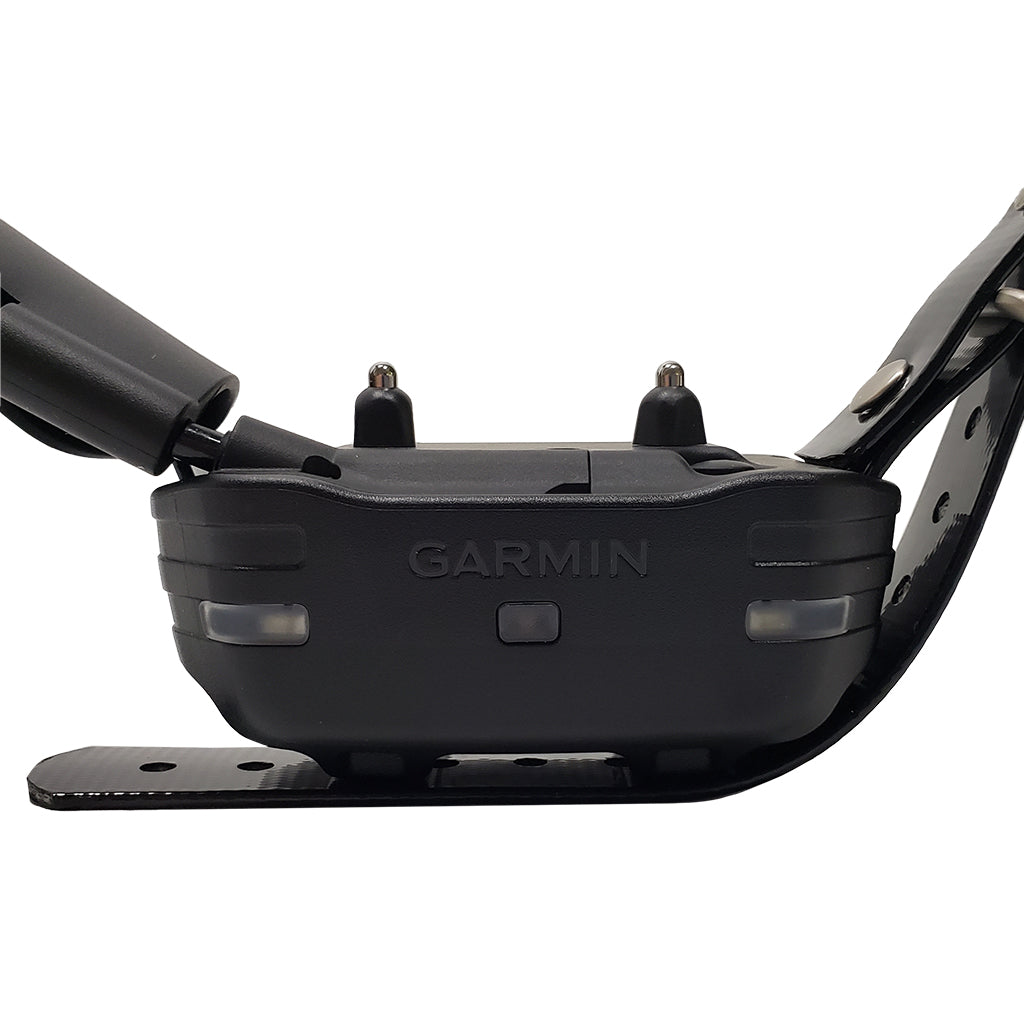

• Waterproof dog device receiver collar with black 3/4" adjustable strap
• Collar receiver charging clip

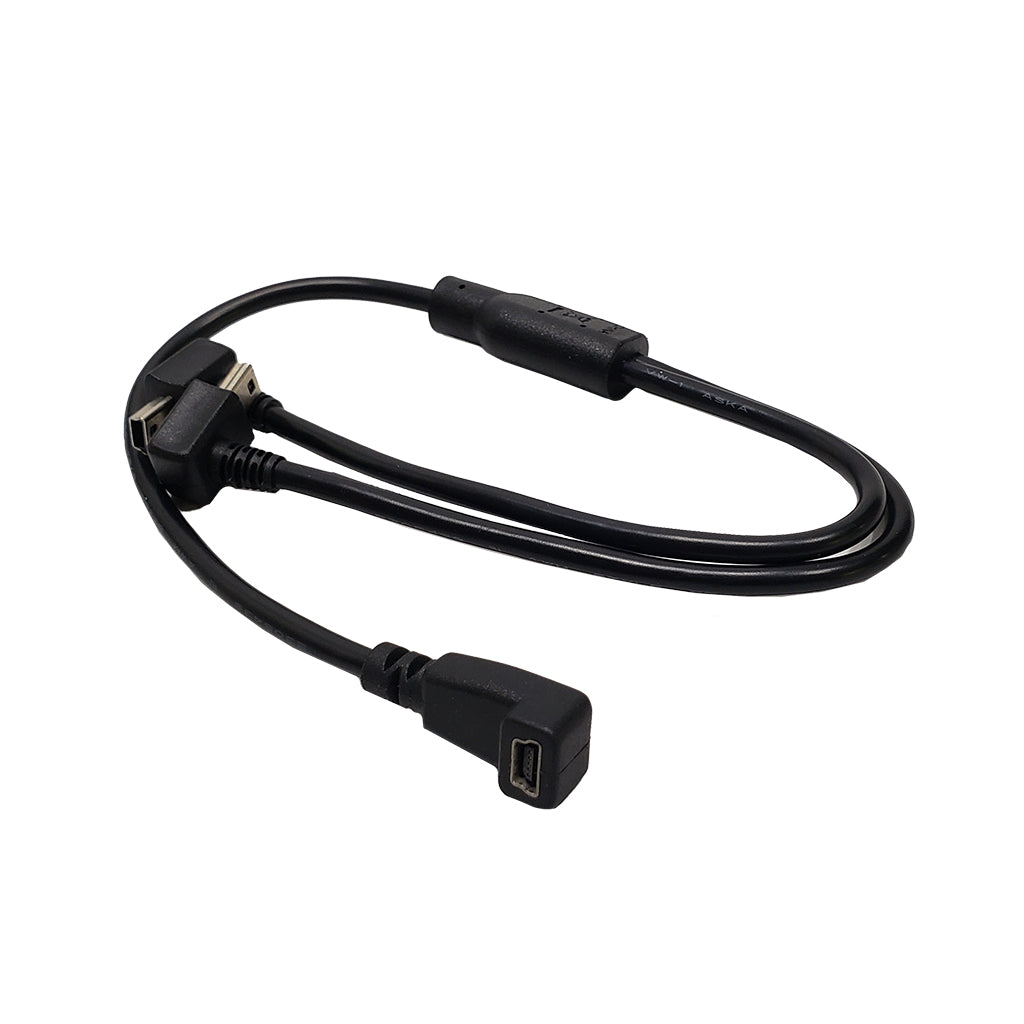

• Split adapter cable

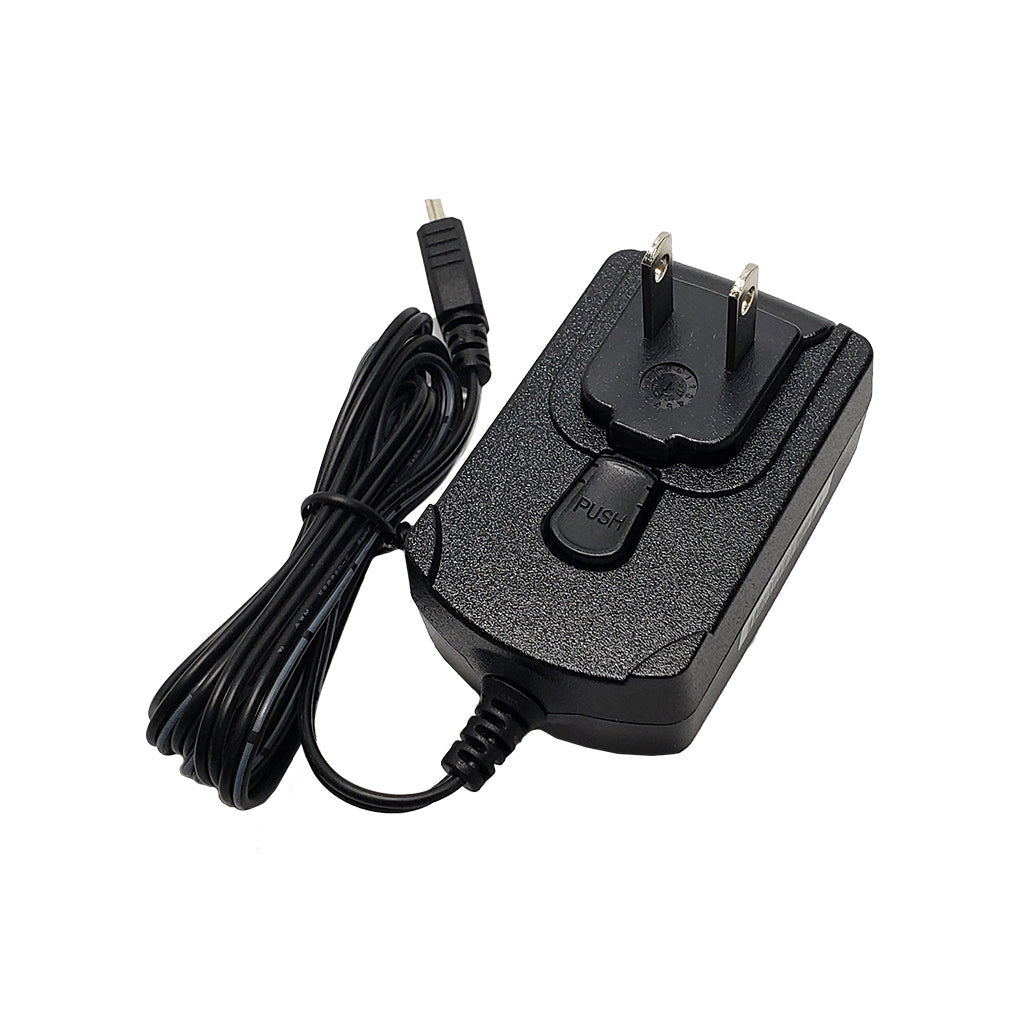

• AC adapter
• Set of long contact points
• Set of short contact points
• Contact point wrench
• Owner's manual

• The PRO Trashbreaker has lithium-ion batteries with two hour rapid charge
• Batteries are user-replaceable in both the transmitter and dog device collar
• Includes USB Splitter Cable that lets you charge both collar and handheld at the same time
• Dog device features a compact charging cradle for no exposed charging jacks

Collar range is up to 4 miles -- the longest range Ecollar on the market.
Maximum range is based on "line of sight." This means that to get the full range out of a system there should be nothing between the transmitter and the receiver, and the terrain should be flat and open. This isn't going to happen in most places that we spend time with our dogs. The range on all of the systems that we carry will vary depending on training conditions, including weather, terrain, and the presence of cover.

We now have 3/4" reflective collar straps (sold separately, #RSTRAP3) that allow you to customize your collars any way you would like! Choose from 9 Colors!

Owners Manual:

Garmin PRO Trashbreaker Manual

FAQ

Is the Pro Trashbreaker compatible with the G3 trashbreaker?
No, the new Pro Trashbreaker is not compatible with older G2 or G3 Trasbreaker systems.

Can I run this unit outside of the United States?
No. As of this time the Pro Trashbreaker has not been authorized to use outside of the United States.

How does the Autorise bark correction mode work?
Autorise is a standard feature of the Garmin BarkLimiter, BarkLimiter Deluxe, Delta Sport, Delta Upland and Pro Series dog training devices. The Autorise mode is designed to provide the proper level of stimulation correction to prevent excessive barking.
When a dog barks, it will be corrected by the device with stimulation. It will only send one correction within a four second window to give the dog a chance to respond. If the dog continues to bark, the collar will increase the intensity level of the stimulation reaching the highest level within 30 seconds. Should the dog refrain from barking, the device will slowly decrease the intensity level reaching the lowest level within 30 minutes. This ensures the dog is corrected at the right level.

How do I pair a Pro series handheld and dog collar device?
All of the Pro series handhelds and collars pair with the same sequence. However, it is important to remember only the Pro Trashbreaker and the TB 10 dog device can be paired together. The Pro 70 and Pro 550 can both pair with the PT 5 and PT 10.

Note: If your handheld and dog collar device are included in the same package they should be paired together from the factory.

To Pair a Pro Series handheld to a dog collar device:
1. Select a Dog color on the handheld with toggle switch or corresponding button
2. Set intensity level on handheld to number
3. Hold Power button on dog collar device until LED light changes to yellow
4. Press training key on handheld once LED on dog collar has turned yellow

The dog collar device beeps when the devices have paired successfully. If the device does not beep, pairing may not have been successful and the above steps should be performed again.

How do I turn on the LED lights on the Pro series dog devices?
The Pro series dog devices all have extra LED lights that can be activated remotely using the handheld. It is important to note the Pro Trashbreaker will only work with the TB 10 dog device. The Pro 70 and Pro 550 will work with the PT 5 and PT 10. The handhelds and dog device collars must also be paired together before activating the LED lights remotely.

To activate LED lights with Pro Trashbreaker and Pro 70:
1. Select dog collar device
2. Rotate intensity dial to L
3. Select training key

To activate LED lights with Pro 550:
1. Select a dog collar device
2. Move toggle switch to A
3. Select top training key to turn light on
4. Select bottom training key to turn light off
