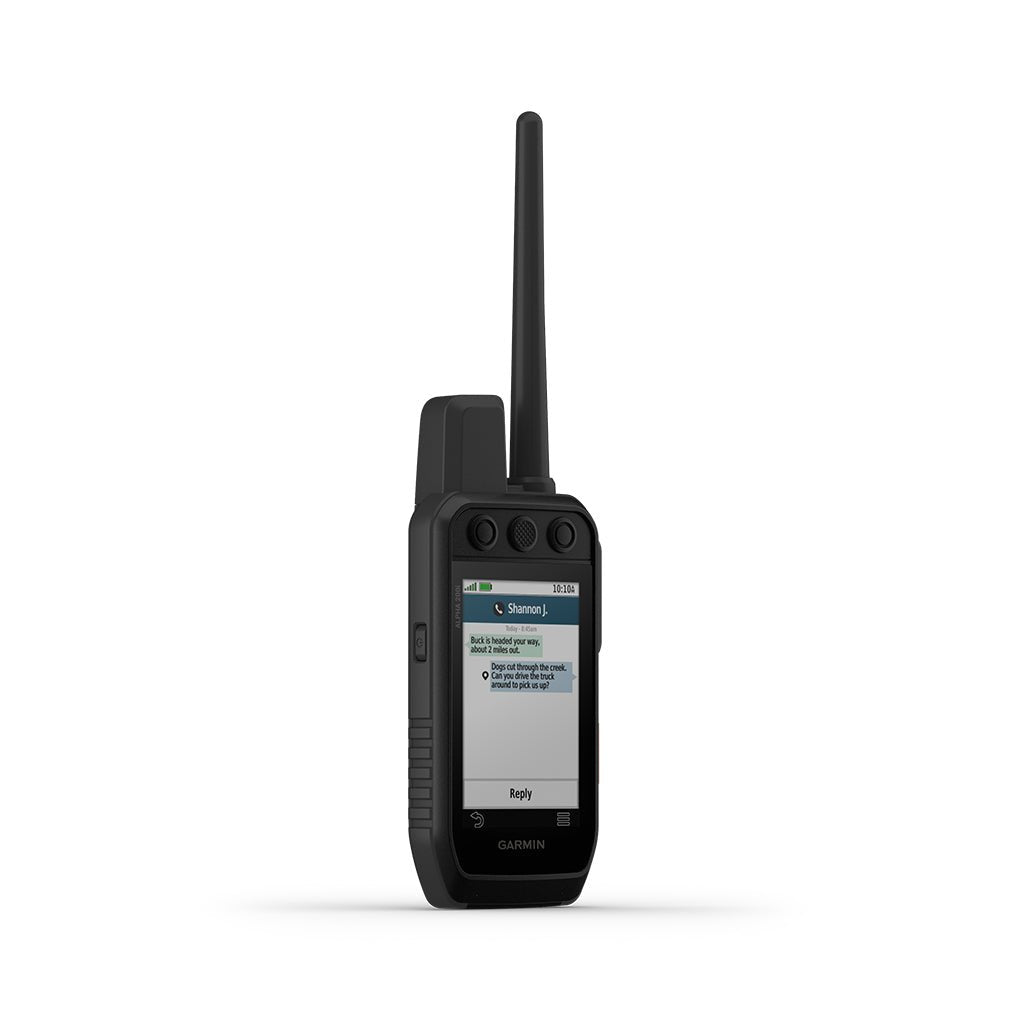

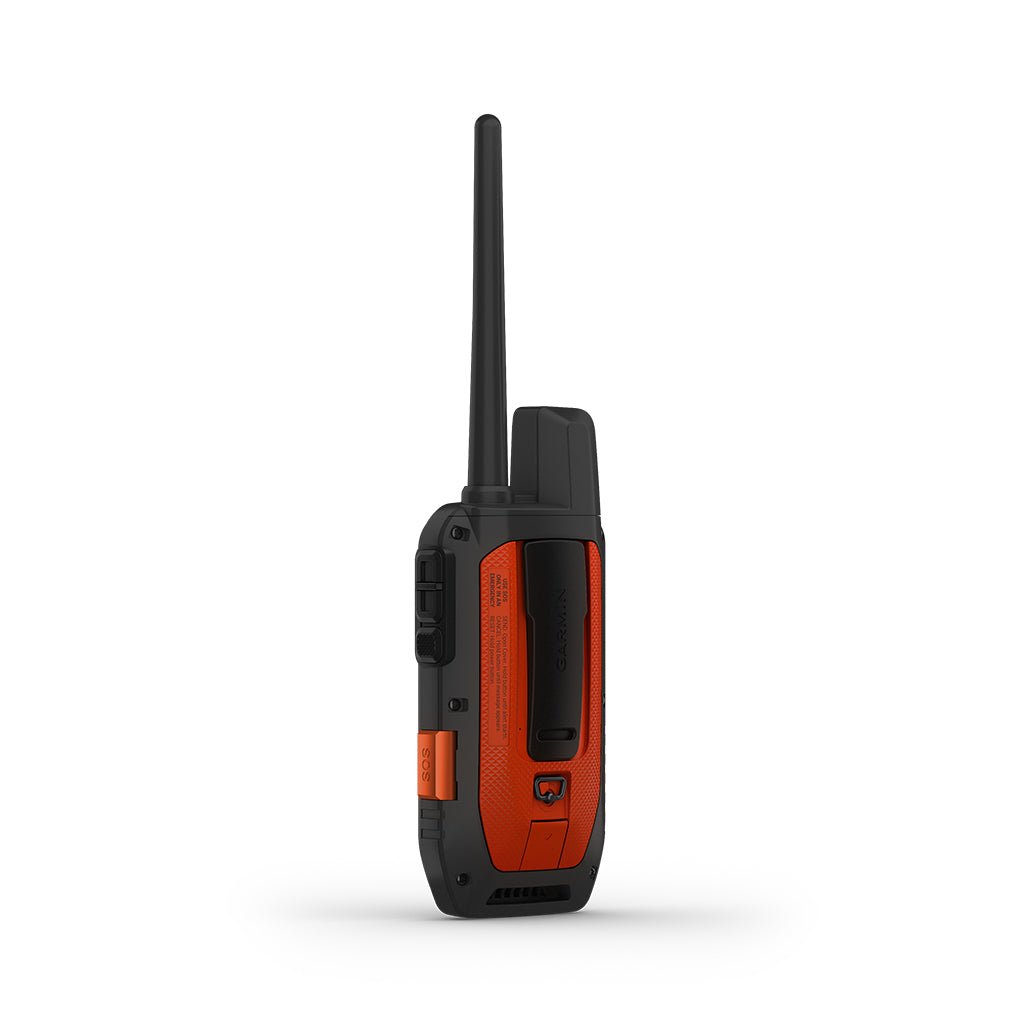

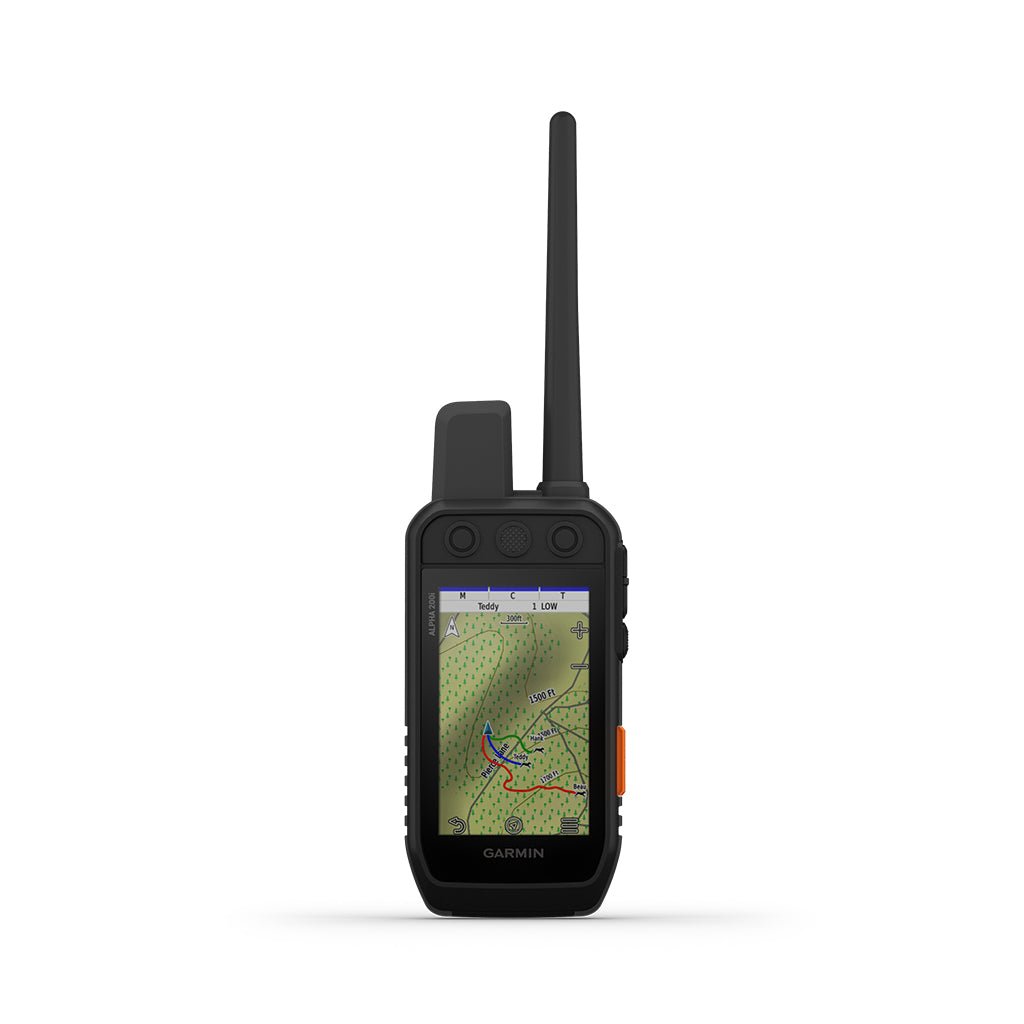

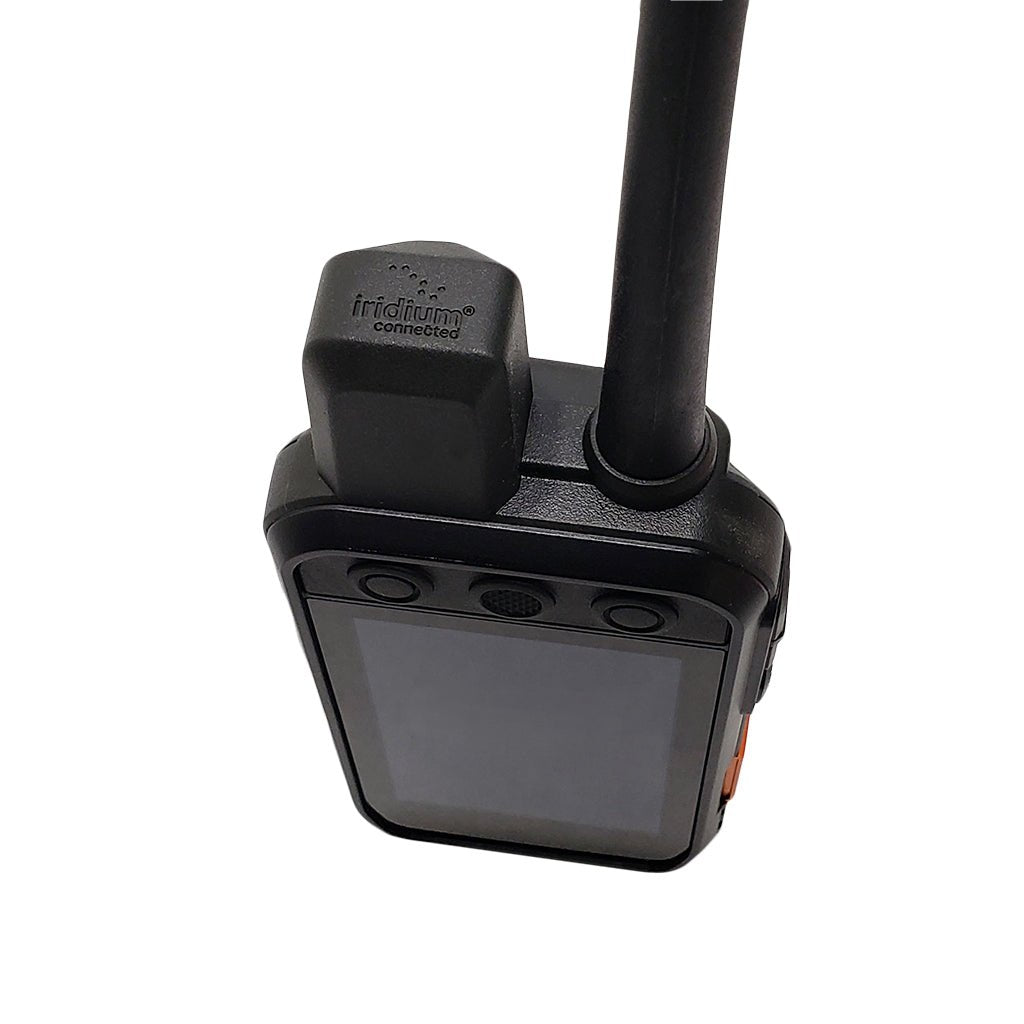

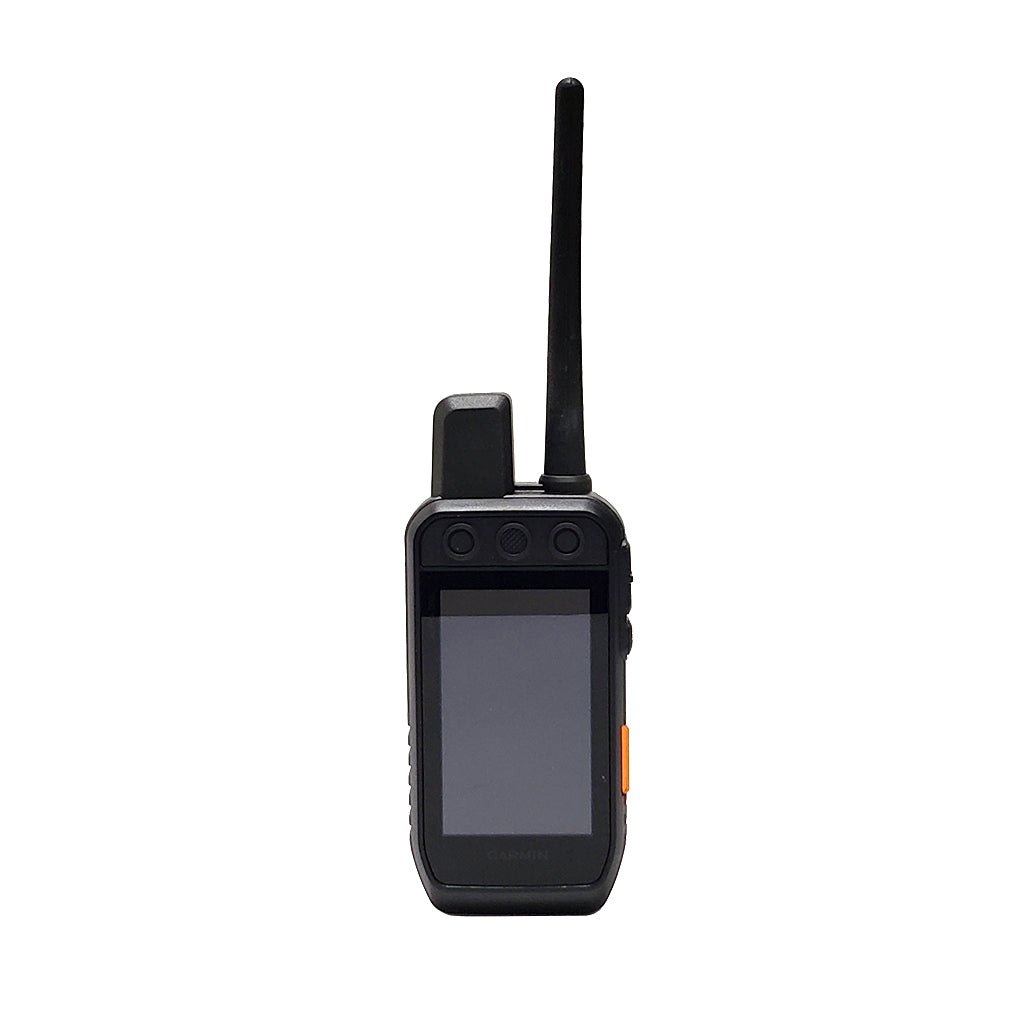

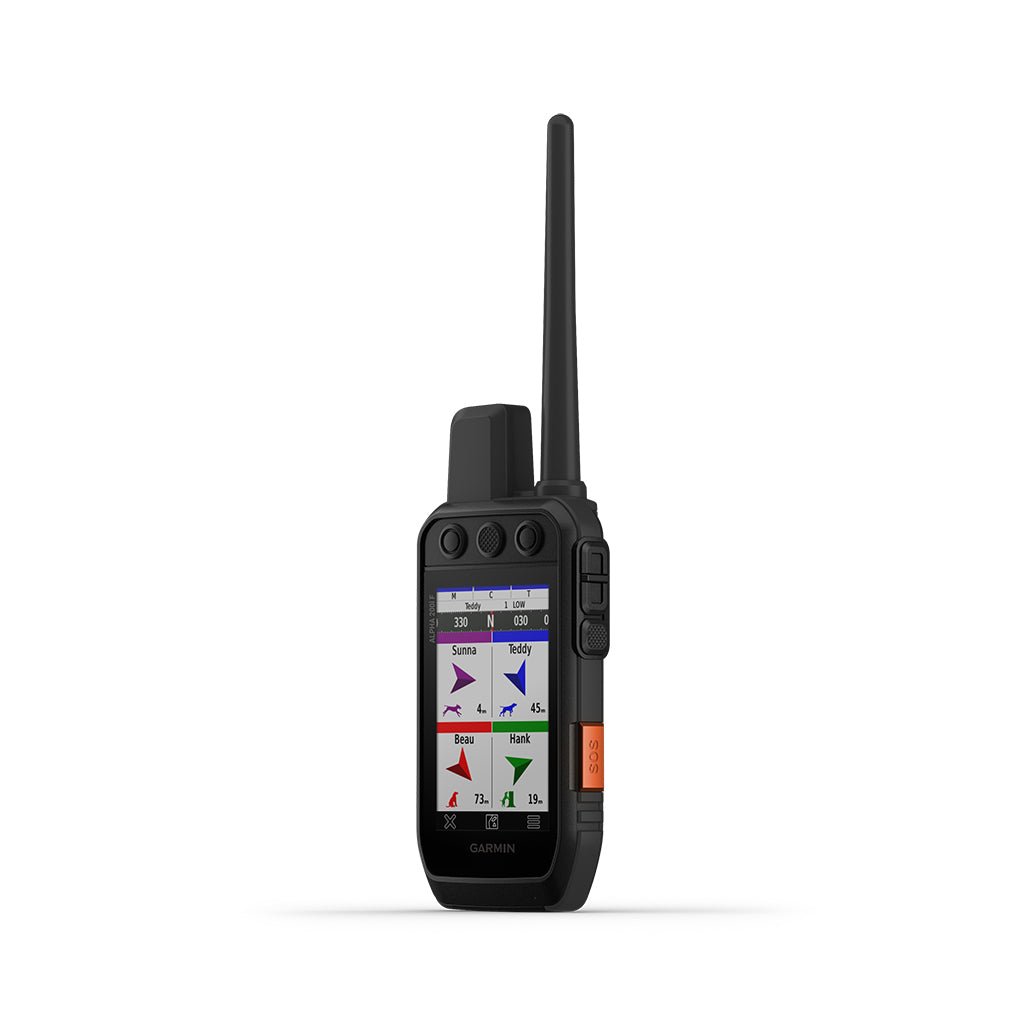

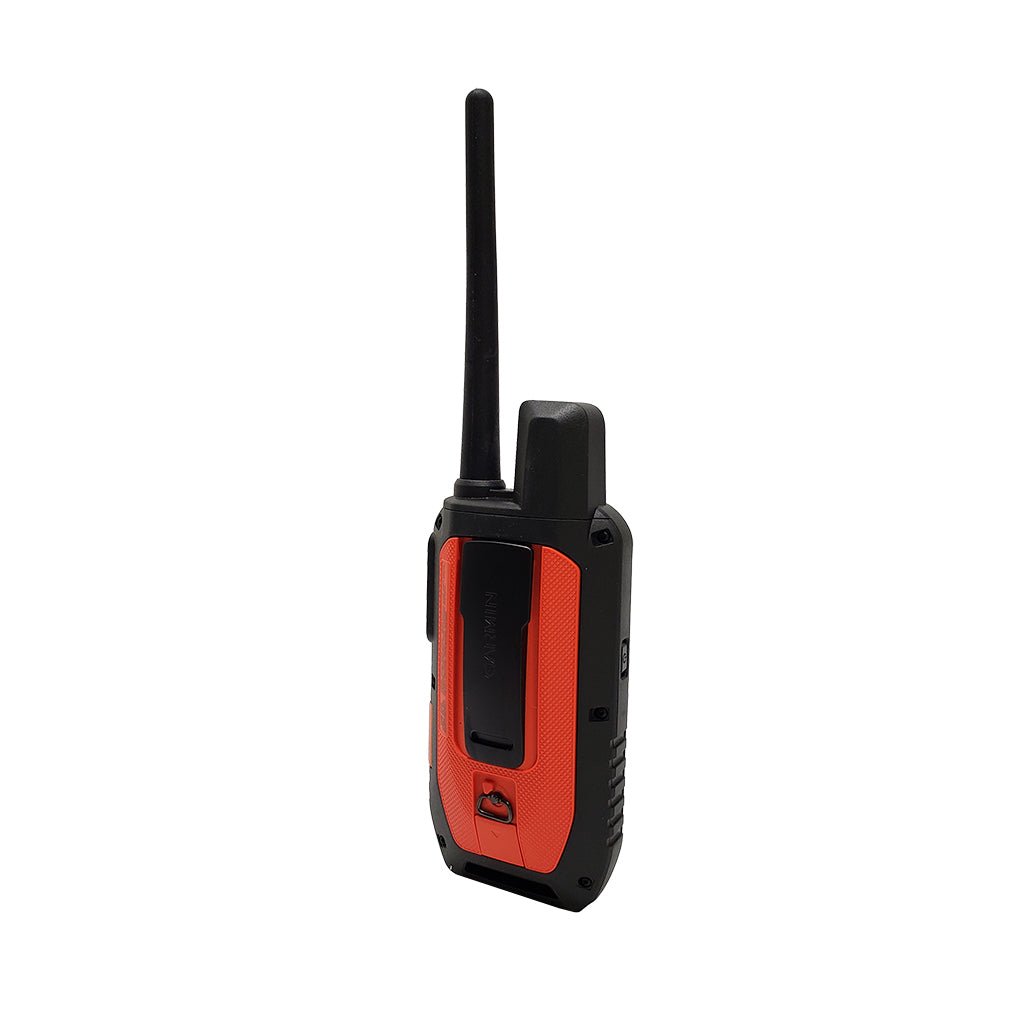

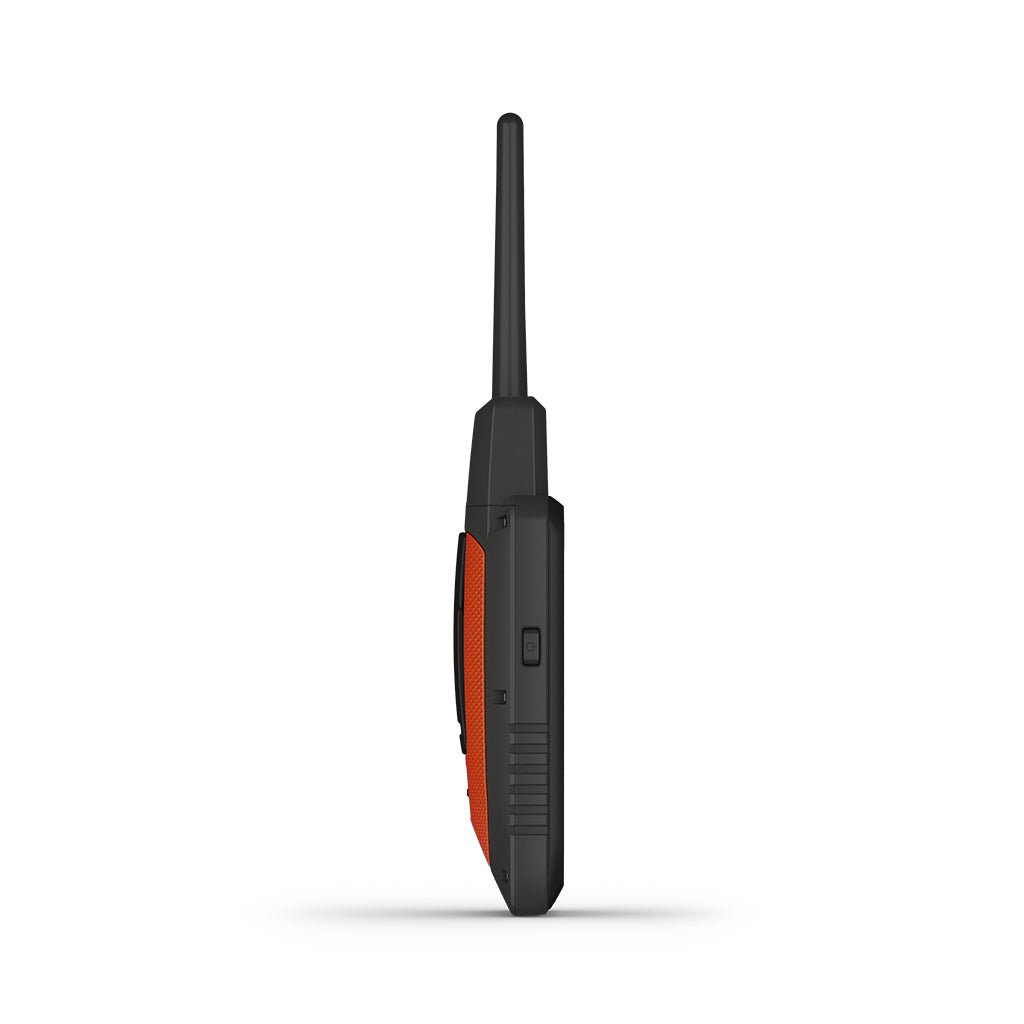

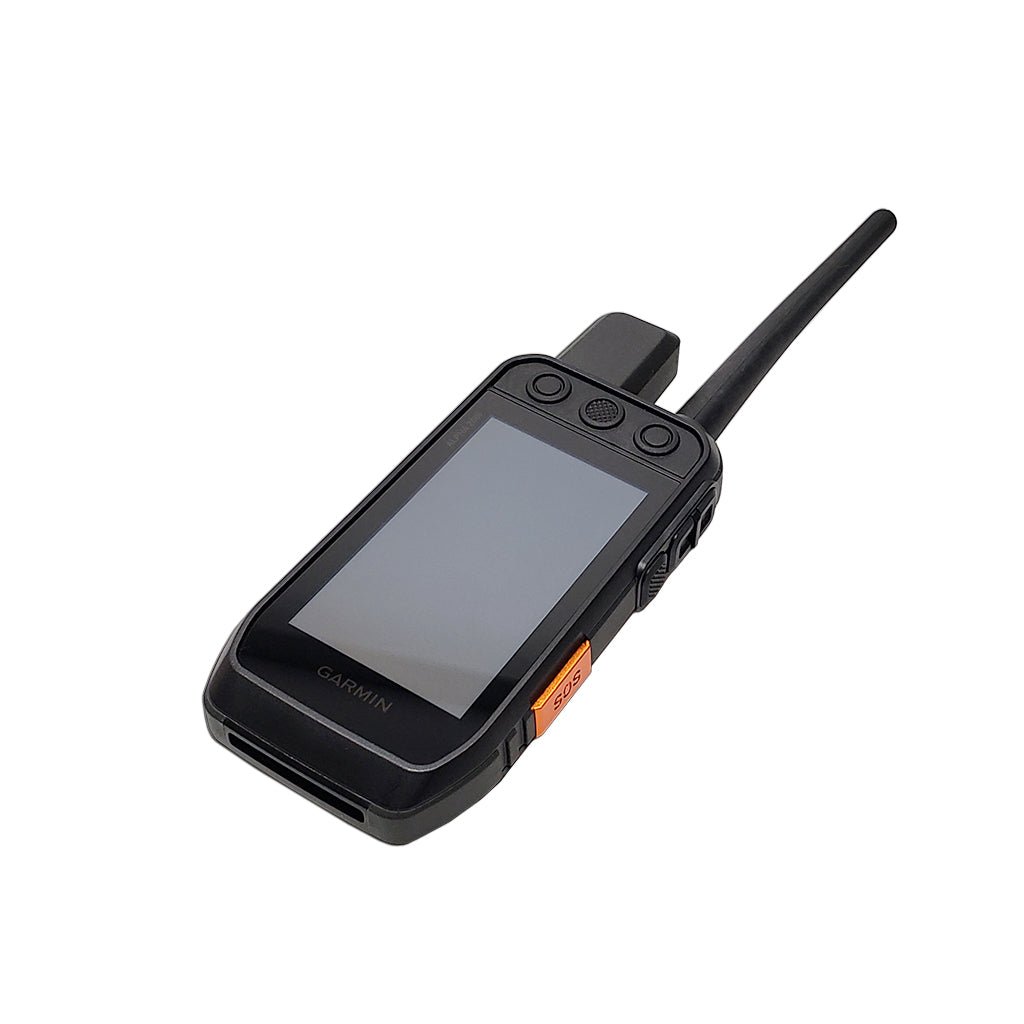

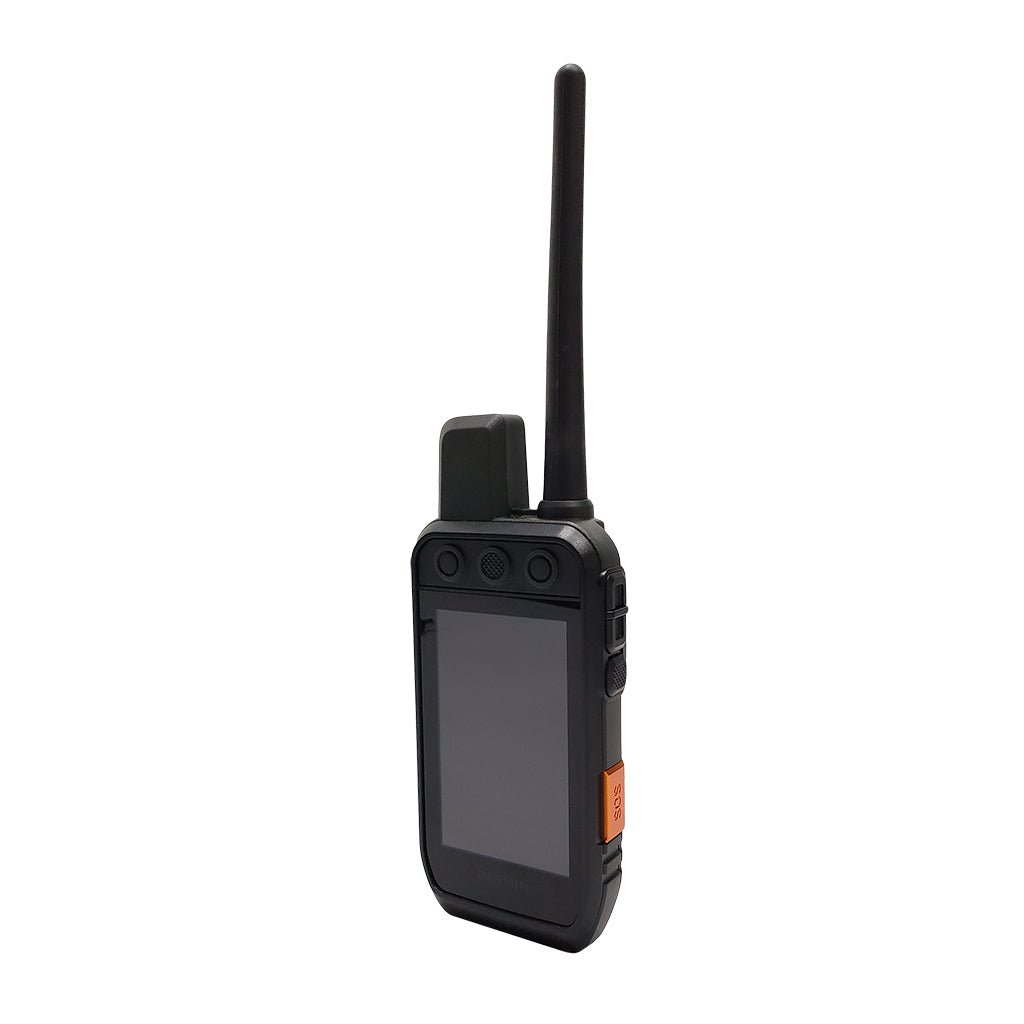

Garmin Alpha 200i Handheld

  • The Alpha® 200i dog tracking and training system let you monitor up to 20 dogs from up to 9 miles (depending on dog device) on a 3.5” display with a 2.5-second update rate. Easily control training functions by using the button-operated, dog-focused design. You’ll also have access to premium Garmin navigation features, such as preloaded TopoActive maps, BirdsEye Satellite Imagery with direct-to-device downloads, and a built-in three-axis compass and barometric altimeter. Now, inReach® technology adds two-way messaging and interactive SOS alerts for peace of mind while you’re in the field (active satellite subscription required; jurisdiction restrictions may apply).

    IMPORTANT NOTICE - Due to circumstances outside of our control and restrictions in place by Garmin we are unable to ship any Garmin GPS-related products outside the United States until further notice. We apologize for the inconvenience.

    • Features sunlight-readable 3.5” capacitive touchscreen display and a button-operated, dog-focused design for quick, minor adjustments
    • Easily set up and monitor up to 20 dogs from up to 9 miles away with a 2.5-second update rate by using multiple global navigation satellite systems (GPS and Galileo)
    • Dog list and group management lets you keep inactive dogs in the system for easier setup
    • Interactive SOS alerts and two-way messaging via the 100% global Iridium® satellite network (active satellite subscription required; jurisdiction restrictions may apply)
    • Preloaded TopoActive maps, direct-to-device BirdsEye Satellite Imagery downloads, and built-in three-axis compass and barometric altimeter
    • User-replaceable battery lasts up to 20 hours; up to 15 hours with inReach® technology enabled
    • 18 levels of correction, including vibration and adjustable tones
    • Backward compatible so you can keep your existing collars and other Alpha® compatible devices; transfer location data between compatible Garmin devices
    • Hunt Metrics data shows each dog’s daily hunting patterns and behaviors per hunt so you can take measures to keep them healthy and safe

    Compatible with Garmin Explore™ website and app to help you manage tracks, routes and waypoints and review statistics from the field.


    Check out our blog on Our Favorite New Features of The Garmin Alpha 200i and Garmin Alpha 200i vs Alpha 100.




    Compatible Collars:

    Garmin TT15X

    Garmin T5X

    Garmin TT15

    Garmin TT15 Mini

    Garmin T5

    Garmin T5 Mini


    Owner's Manual: Garmin Alpha 200i Owner's Manual

  • Physical Dimensions: 2.7 x 6.4 x 1.3" (not including the antenna)

    Touchscreen: Yes

    Display Size: 1.8"w x 3.0"h (3.5" diagonal)

    Display Resolution: 282 x 470 pixels

    Display Type: Transflective, color FTF touchscreen

    Weight: 9.9 ounces with standard antenna and battery

    Battery Type: Rechargeable lithium-ion

    Battery Life: Up to 20 hours; up to 15 hours with inReach technology enabled

    Water Rating: IPX7

    High-Sensitivity Receiver: Yes

    Interface: High-Speed USB

    Memory: 16 GB


    Maps and Memory:

    Preloaded Maps: TopoActive

    Ability to add maps: yes

    Basecamp: Yes

    Birdseye: Yes, direct to device

    External Memory Storage: MicroSD card

    Track Log: 20,000 points, 250 save gpx tracks, 300 saved fit activities

    Routes: 250



    Barametric Altimeter: Yes

    Compass: Yes (tilt-compensated 3-axis)


    Two-Way Radio Features:

    Frequency Band: MURS

    Range: TT15 and T5 - 9 Miles; TT15 Mini and T5 Mini - 4 Miles

  • Alpha 200i Handheld with rechargeable lithium-ion battery pack

    Belt Clip

    AC Adapter

    MicroUSB Cable


  • What maps work with the Garmin Alpha 200i?

    The Garmin Hunt View Plus maps will work in the Garmin Alpha 200i. The OnX mapping will not work in the handheld.


    Can a collar be in an Alpha 100 and Alpha 200i at the same time?

    Yes, a collar can be tracked by the Alpha 200i and the Alpha 100 and/or Astro 430 handhelds at the same time.


    Is the Garmin Alpha 200i able to control a beeper?

    No, the Garmin Alpha 200i like the Alpha 100 can not control a Garmin beeper. The only transmitter that can control a Garmin beeper are the PRO 550 and the Delta Upland.


    Can a Garmin Alpha 200i track a collar that is being tracked by a Garmin Alpha 100?

    Yes, a Garmin Alpha 200i can track any collar (T5, T5 mini, TT15, TT15 mini) that is paired into an Alpha 100 and Astro 430 handheld.


    Is the Alpha 200i Handheld waterproof?

    The Alpha 200i handheld is rated at IPX7, which means that it is rated to be waterproof in up to 1 meter of water for up to 30 minutes. This provides safe protection of your Alpha handheld, allowing for use in rain, snow, and wet cover, as well as the handheld being splashed with water and the accidental dropping in shallow water.
